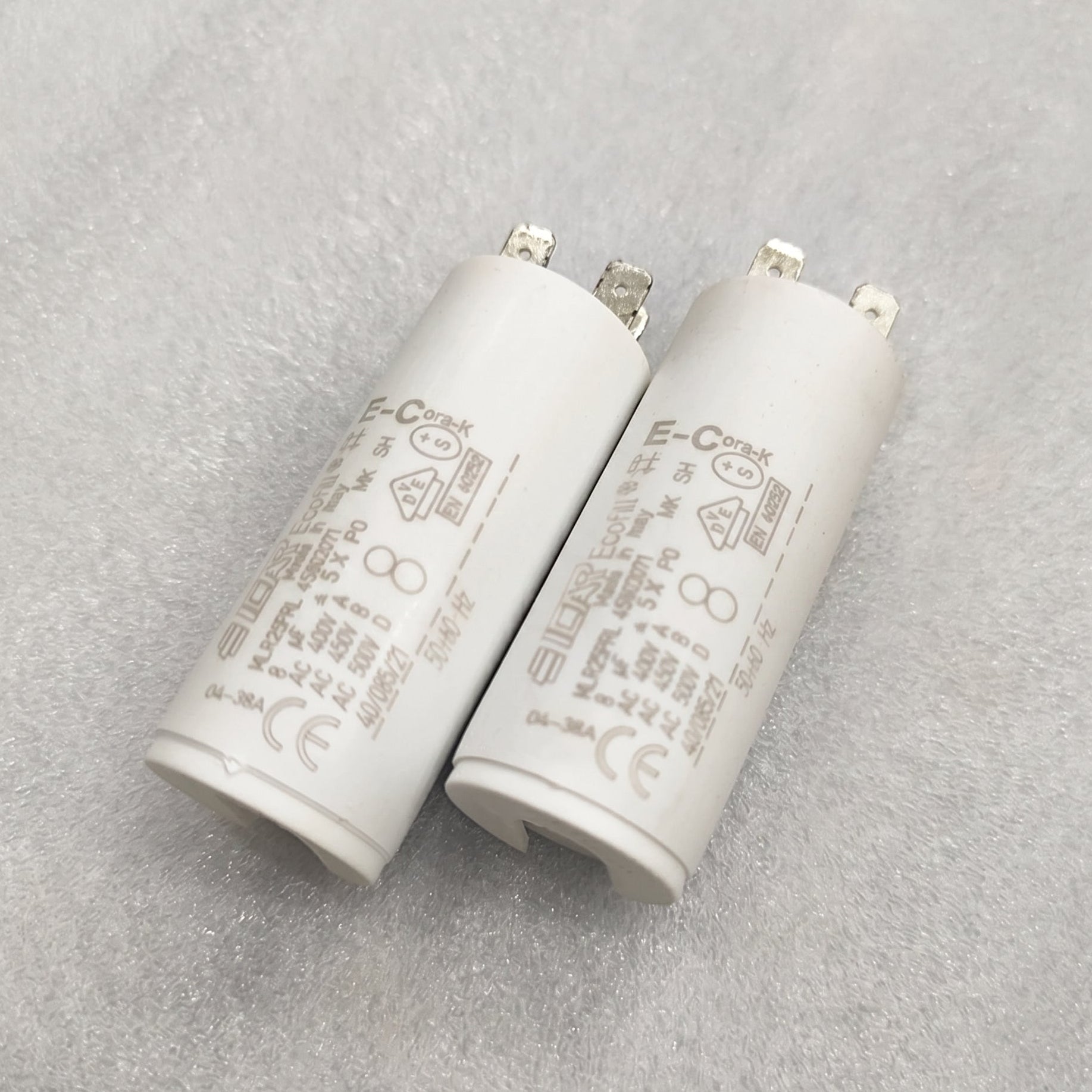

ICAR MLR25PRL45803071 / MK SH ECOFILL MLR 25 PRL Motor Run Capacitor, 8µF, 450V
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ICAR MLR25PRL45803071 (Order Code: MK SH) is a highly reliable ECOFILL MLR 25 PRL series motor run capacitor engineered for single-phase asynchronous motors, pumps, compressors, and HVAC applications. Featuring a self-healing metallized polypropylene film dielectric housed in a robust, resin-filled plastic case with 6.3mm faston terminals and an M8 mounting stud, this 8µF capacitor delivers exceptional performance and longevity, offering a Class A 30,000-hour operational lifespan at 400V.
| Product ID (MPN) | MLR25PRL45803071 |
| Order Code | MK SH |
| Product Series | ECOFILL MLR 25 PRL |
| Capacitance | 8 µF |
| Capacitance Tolerance | ±5% (Class J) |
| Rated Voltage & Life (400V) | 400V AC (Class A 30,000 h) |
| Rated Voltage & Life (450V) | 450V AC (Class B 10,000 h) |
| Rated Voltage & Life (500V) | 500V AC (Class D 1,000 h) |
| Frequency | 50/60 Hz |
| Connection Type | 6.3 mm Faston Terminals |
| Mounting | Bottom Stud (M8) |
| Dielectric Material | Metallized Polypropylene Film |
| Housing Material | Plastic (Resin Filled) |
| Safety Class | S0 |
| Climatic Category | 40/085/21 |
| Dimensions (Diameter x Length) | 30 mm x 71 mm |
| Standards & Approvals | EN 60252-1, VDE |
