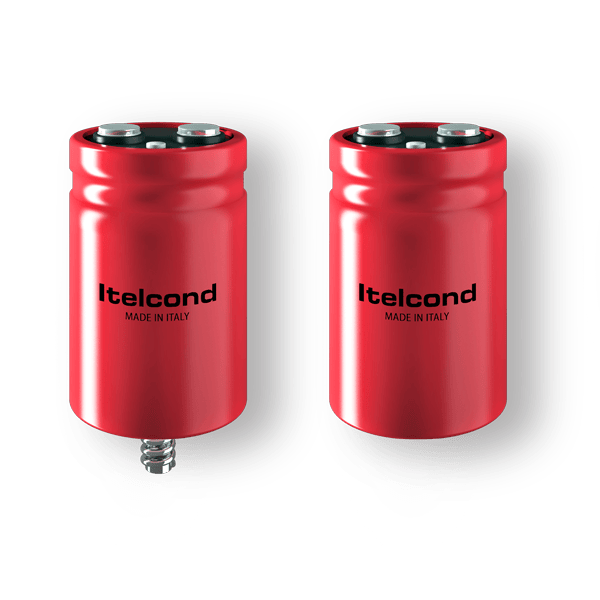

Itelcond AY(U)X-HR103X450DJ1 Aluminium Electrolytic Capacitor, 10000µF, 450V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Itelcond AY(U)X-HR103X450DJ1 is an AYX-HR Series aluminium electrolytic capacitor rated at 10000µF and 450 V DC. This screw terminal capacitor is specified with a DJ case code, 76 mm x 222 mm dimensions, and verified ripple current ratings for industrial power electronics and DC bus support applications.
| Product ID / MPN | AY(U)X-HR103X450DJ1 |
| Secondary ID | AYX-HR103X450DJ1 |
| Brand / Series / Category | Itelcond AYX-HR Series aluminium electrolytic capacitor |
| Nominal Capacitance | 10000µF at 100Hz |
| Rated Voltage | 450 V DC |
| Ripple Current | 23.4 A at 85°C / 100Hz; 32.8 A at 55°C / 100Hz |
| ESR | 19 mΩ max, 15 mΩ typ at 100Hz |
| Impedance | 14 mΩ max at 10kHz |
| Dissipation Factor | Tanδ 0.12 at 100Hz |
| Mechanical Specs | DJ case code, 76 mm x 222 mm |
| Connection | Screw terminals |
Typical applications include high-voltage inverters, industrial motor drives, professional welding equipment, DC bus capacitor banks, and heavy-duty power electronics requiring high-capacitance energy storage at 450 V DC.
Apexon Supply supports B2B sourcing and replacement review for Itelcond AY(U)X-HR103X450DJ1 capacitors. Buyers should verify capacitance, voltage rating, ESR, ripple current, dimensions, case code, and terminal type against the original equipment requirements before replacement.
Send the MPN, quantity, and application requirements to request a B2B quote for sourcing support and technical alignment.
