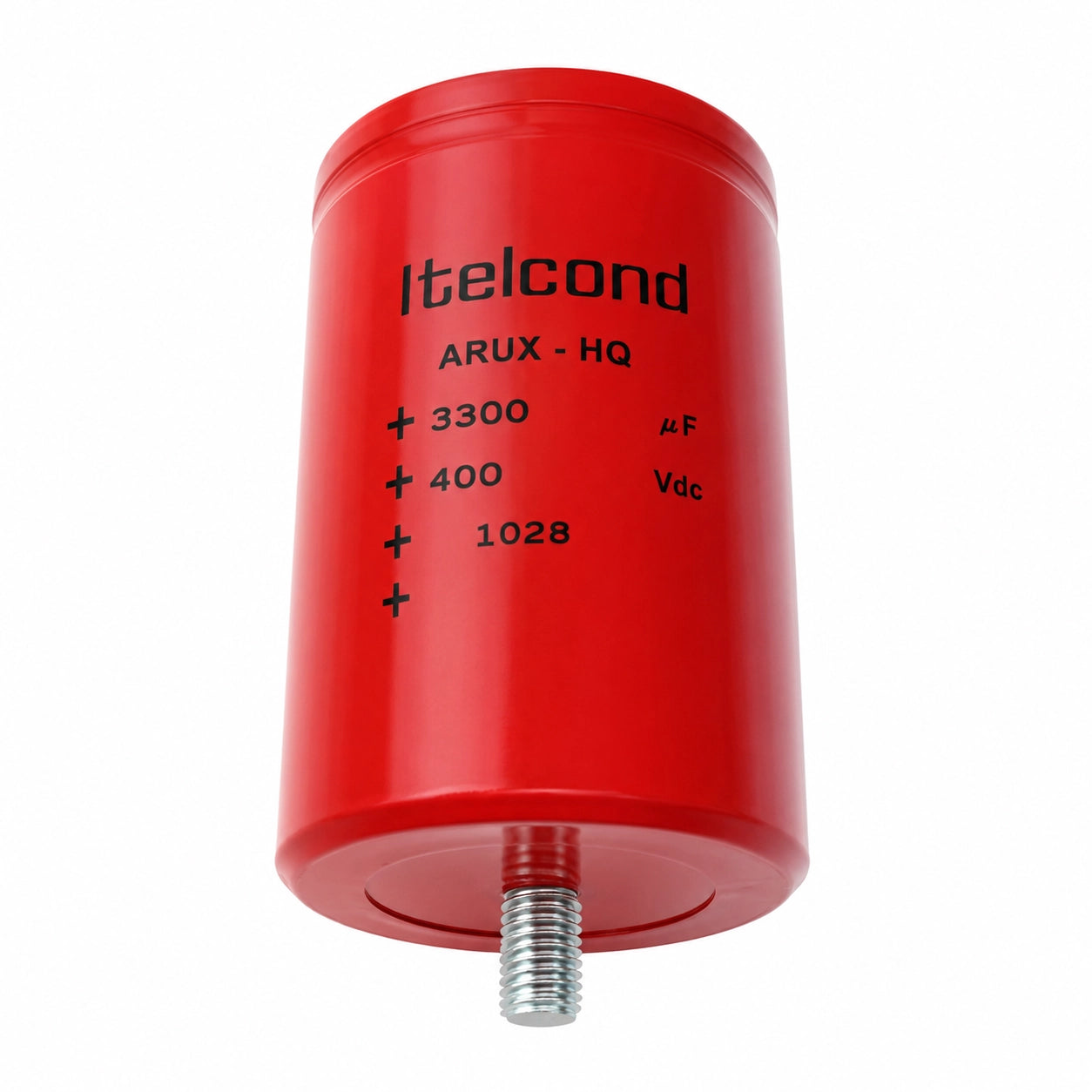

ITELCOND AR(U)X332M400DC1 Aluminium Electrolytic Capacitor, 3300 µF, 400 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ITELCOND AR(U)X332M400DC1 is an AR(U) series screw terminal aluminium electrolytic capacitor rated at 3300 µF and 400 VDC. This capacitor is specified with a 76 x 105 mm aluminium case, M5 screw terminals, and a standard 85°C rated temperature for industrial power and energy applications.
| Product ID / MPN | AR(U)X332M400DC1 |
| Brand | ITELCOND |
| Series | AR(U) |
| Product Type | Aluminium electrolytic capacitor |
| Capacitance | 3300 µF |
| Rated Voltage DC | 400 VDC |
| Capacitance Tolerance | ±20% standard; -10%/+30% on request |
| Dimensions | 76 x 105 mm |
| Case Code | DC |
| ESR Max @100Hz | 52 mΩ |
| Ripple Current @100Hz 85°C | 9.2 A |
| Operating Temperature Range | -40°C to +85°C |
| Useful Life | 5,000 h |
| Mounting Style | Flat bottom or mounting stud |
| Terminal Type | Screw terminal |
| Connection Screw Thread | M5 |
| Connection Screw Torque | 2.0 Nm |
| Case Material | Aluminium |
| External Material UL Rating | UL94-V0 |
Typical applications include industrial power electronics, DC-link energy storage, filtering, power conversion equipment, drives, and maintenance replacement projects where a screw terminal aluminium electrolytic capacitor with 3300 µF and 400 VDC ratings is required.
Apexon Supply supports B2B sourcing and replacement review for ITELCOND AR(U) series capacitors. Buyers should compare capacitance, voltage rating, ESR, ripple current, mounting configuration, dimensions, and terminal requirements against the original equipment specification before procurement.
Send the MPN, required quantity, and application details to request RFQ support and technical alignment for this industrial capacitor. Most qualified RFQs receive a response or quote within 12 hours.
