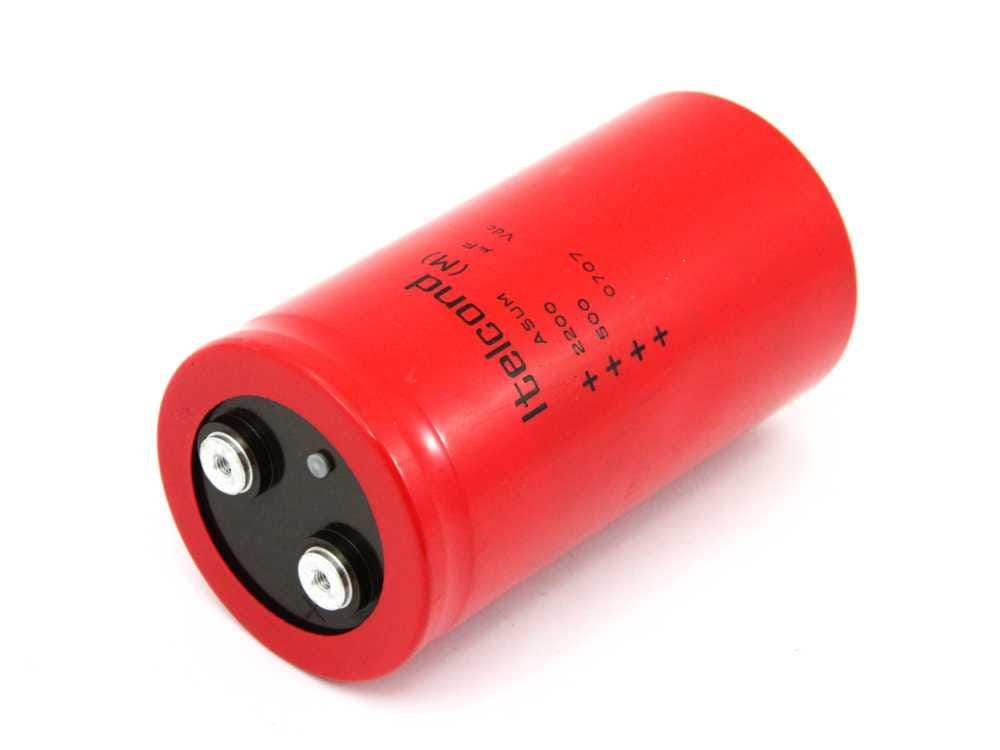

Itelcond ASUM Aluminum Electrolytic Capacitor, 2220µF, 500V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Itelcond ASUM is a high-voltage aluminum electrolytic capacitor from the AS(U) 85°C screw terminal series. The ASU configuration indicates mounting stud construction, with M tolerance for ±20% capacitance. Verified 500 V DC, 2220µF variants are listed with screw terminals for industrial power electronics and DC-link capacitor applications.
| Product ID / MPN | ASUM |
| Brand / Series / Category | Itelcond AS(U) Series aluminum electrolytic capacitor |
| Capacitance | 2220µF |
| Rated Voltage | 500 V DC |
| Surge Voltage | 550 V |
| Capacitance Tolerance | ±20% standard M tolerance |
| Temperature Range | -40°C to +85°C |
| Lifetime | 15,000 h at 85°C |
| Connection / Mounting | Screw terminal, mounting stud |
| Verified 500 V Ordering Codes | ASUM222M500DC1, ASUM222M500DF1 |
| Verified Case Options | DC: 76 x 105 mm; DF: 76 x 145 mm |
| Ripple Current at 85°C / 100Hz | 7.6 A for DC case; 8.3 A for DF case |
| External Material | UL94-V0 |
Typical applications include DC-link circuits, power conversion equipment, industrial drives, rectifier systems, energy storage sections, and high-voltage filtering assemblies where screw terminal aluminum electrolytic capacitors are required.
Apexon Supply supports B2B sourcing and replacement review for Itelcond ASUM capacitors. Buyers should confirm the full ordering code, capacitance, rated voltage, case code, dimensions, terminal configuration, and ripple current requirements against the equipment documentation before replacement.
Send the MPN, full ordering code, quantity, and application requirements to request a B2B quote for sourcing support and technical alignment.
