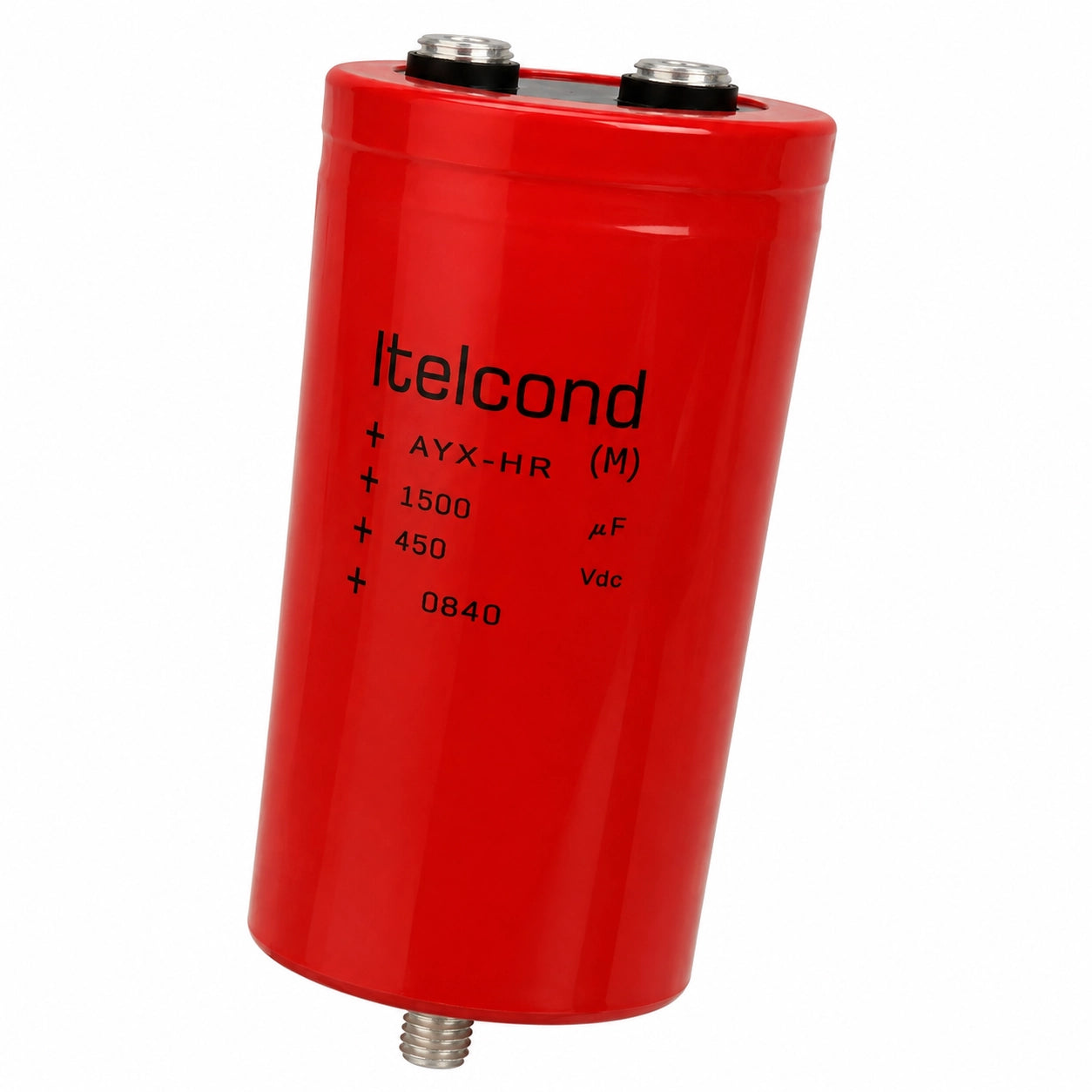

ITELCOND AYUX-HR152X450CC1 Aluminum Electrolytic Capacitor, 1500uF, 450V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ITELCOND AYUX-HR152X450CC1 is an AYU-HR screw-terminal aluminum electrolytic capacitor rated at 1500 µF and 450 V DC. This mounting-stud configuration uses case code CC, with a -10%/+30% capacitance tolerance.
| Catalogue Number | AYUX-HR152X450CC1 |
| Capacitance | 1500 µF |
| Rated Voltage | 450 V DC |
| Capacitance Tolerance | -10% / +30% |
| Case Code | CC |
| Case Size | 63 x 107 mm |
| Dissipation Factor | 0.10 @ 100 Hz |
| ESR Max | 106 mΩ @ 100 Hz |
| ESR Typical | 80 mΩ @ 100 Hz |
| Impedance Max | 60 mΩ @ 10 kHz |
| Ripple Current @ 55°C | 9.5 A @ 100 Hz |
| Ripple Current @ 85°C | 6.8 A @ 100 Hz |
| Terminal Type | Screw terminal |
| Mounting | Mounting stud |
| Operating Temperature | -40°C to +85°C |
| Climatic Category | 40/85/56 |
The AY-HR / AYU-HR series is specified for high-ripple-current, high-reliability and long-life applications.
Apexon Supply provides B2B sourcing and replacement support for this ITELCOND capacitor. Buyers should compare the exact catalogue number, capacitance, voltage, case size, mounting configuration and electrical ratings against the installed component before replacement.
For RFQ support, submit ITELCOND AYUX-HR152X450CC1, required quantity and application or replacement requirements. Most qualified RFQs receive a response or quote within 12 hours.
