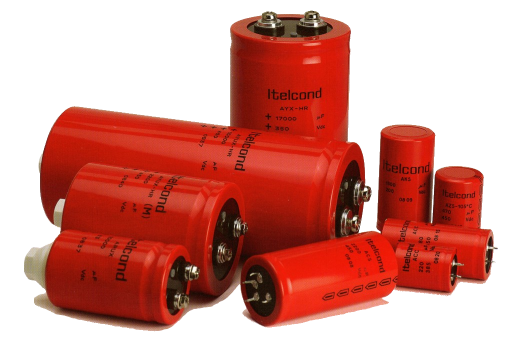

ITELCOND AYUX-HR332X450DC1 AYX-HR Aluminum Electrolytic Capacitor, 3300uF, 450V
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ITELCOND AYUX-HR332X450DC1 is a high-performance screw-terminal aluminum electrolytic capacitor designed for heavy-duty industrial electronics. Engineered for high ripple current capability and long-term reliability, this AYX-HR series component is ideal for power converters, industrial motor drives, and UPS systems requiring robust energy storage and filtering in demanding thermal environments.
| Product ID (MPN) | AYUX-HR332X450DC1 |
| Product Series | AYX-HR (High Ripple) |
| Nominal Capacitance | 3300 µF @ 100Hz |
| Rated Voltage (Vn) | 450V DC |
| Case Size Code | DC |
| Diameter | 76 mm |
| Height | 107 mm |
| ESR (Max / Typ) | 58 mΩ / 46 mΩ @ 100Hz |
| Impedance (Zmax) | 43 mΩ @ 10kHz |
| Ripple Current (Iripple) | 13.6 A @ 55°C / 9.7 A @ 85°C (100Hz) |
| Dissipation Factor (Tanδ) | 0.12 @ 100Hz |
| Mounting Type | Screw Terminal / Stud Mount Optional |
