Itelcond AYUX-HR472X350DF1 AYX-HR Series Aluminium Electrolytic Capacitor, 4700uF, 350V
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

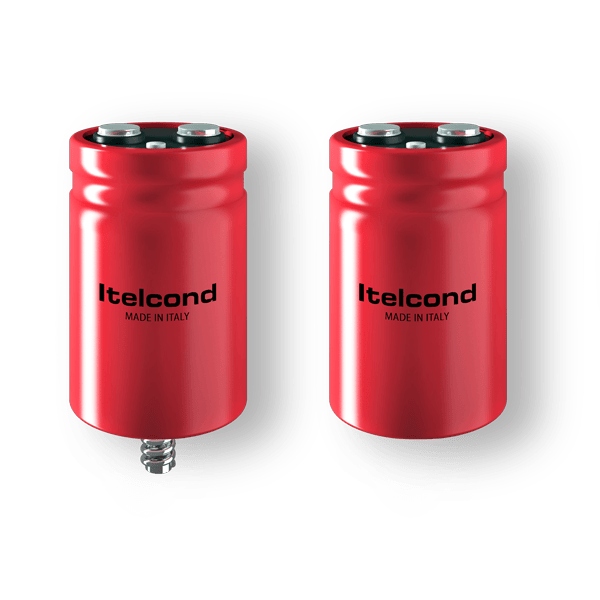

The Itelcond AYUX-HR472X350DF1 is a high-reliability aluminium electrolytic capacitor engineered for demanding industrial power electronics. Featuring a threaded mounting stud for secure mechanical integration, this AYX-HR series component delivers a balanced 4700uF capacitance at 350VDC, optimized for high ripple current handling and an extended service life in power conversion and inverter systems.
| Product ID (MPN) | AYUX-HR472X350DF1 |
| Series | AYX-HR (High Reliability / Mounting Stud) |
| Nominal Capacitance | 4700 uF |
| Rated Voltage (Vn) | 350 VDC |
| Surge Voltage | 385 VDC |
| Case Dimensions (DxH) | 76 x 147 mm (Case Code DF) |
| Ripple Current (@85°C/100Hz) | 16.3 A |
| ESR (Max @100Hz) | 27 mΩ |
| Zmax (@10kHz) | 20 mΩ |
| Terminal Type | M5 Screw Terminals |
| Standard Compliance | CECC 30300, IEC 384-4 Long Life Grade |
