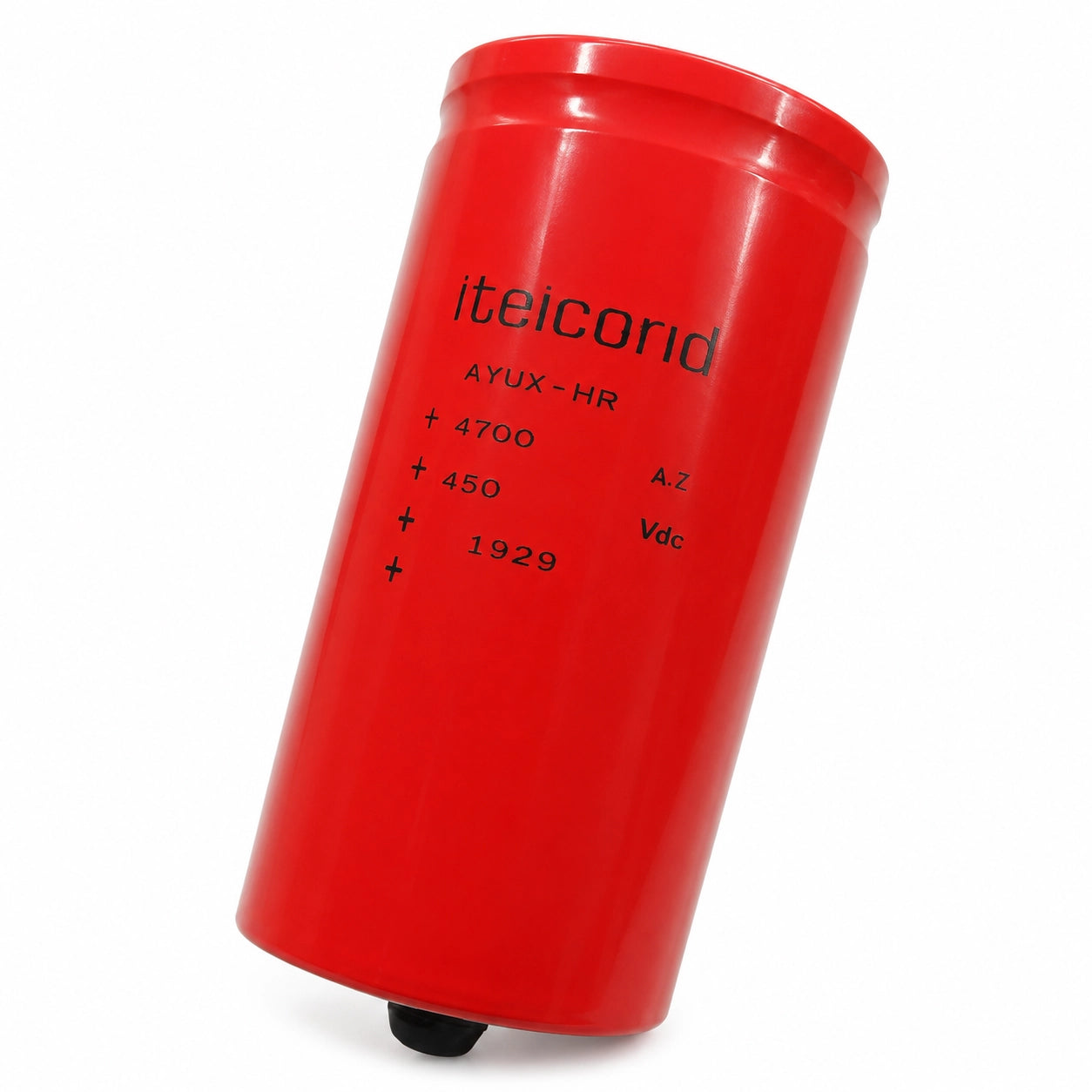

ITELCOND AYUX-HR472X450EC1 Aluminum Electrolytic Capacitor, 450V, 4700uF
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ITELCOND AYUX-HR472X450EC1 is an AYUX-HR Series aluminum electrolytic capacitor with mounting stud configuration, rated for 4700uF capacitance and 450V working voltage. This high-ripple, long-life capacitor uses screw terminals and an EC case size for industrial power electronics and maintenance replacement review.
| Product ID / MPN | AYUX-HR472X450EC1 |
| Brand / Series / Category | ITELCOND AYUX-HR Series Aluminum Electrolytic Capacitor |
| Capacitance | 4700uF at 100Hz |
| Rated Voltage | 450V |
| Surge Voltage | 495V |
| Tolerance | X = -10% / +30% |
| Case Size | EC, 90 x 107 mm |
| Ripple Current | 18.7A at 55°C / 13.4A at 85°C, 100Hz |
| ESR | 37 mOhm max / 30 mOhm typ at 100Hz |
| Impedance | 28 mOhm max at 10kHz |
| Terminal / Connection | Screw terminals, M6 insert screw thread for 90 mm diameter case |
| Mounting | Mounting stud configuration with standard insulating plastic washer and metallic nut |
| Operating Temperature | -25°C to +85°C |
| Standards | CECC 30300, IEC 384-4 long life grade, MIL C62D, DIN 41240 / DIN45910 |
Typical applications include power electronics, DC-link filtering, industrial drives, power conversion systems, and maintenance replacement programs where 450V aluminum electrolytic capacitors with high ripple current capability are required.
Apexon Supply supports B2B sourcing and replacement review for ITELCOND AYUX-HR472X450EC1, helping procurement teams compare verified electrical ratings, case size, mounting style, and terminal configuration against equipment requirements.
Send the MPN, quantity, and application requirements to request a B2B quote and confirm technical alignment for this ITELCOND capacitor.
