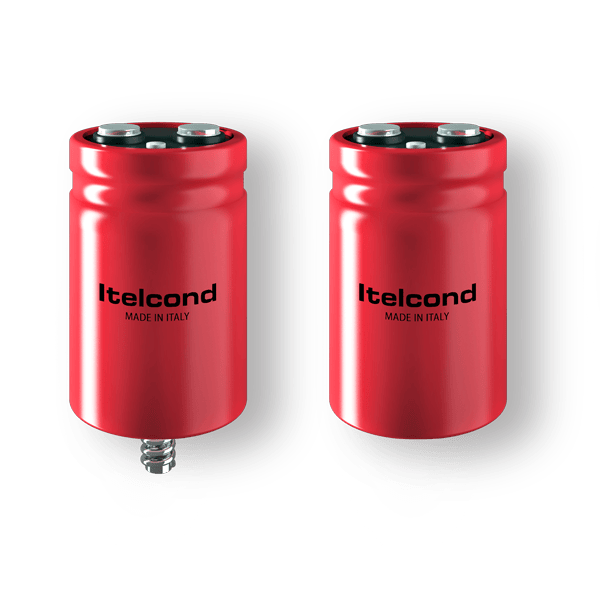

Itelcond AY(U)X-HR223X063BC1 AYX-HR Series Aluminium Electrolytic Capacitor, 22000µF, 63V
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYX-HR series is a premium "long life grade" aluminium electrolytic capacitor engineered for high-reliability industrial power applications. Featuring a robust 22000µF capacitance and screw terminal architecture, this component is optimized for high ripple current environments such as motor drives, heavy-duty welding equipment, and renewable energy inverters.
| Product ID (MPN) | AY(U)X-HR223X063BC1 |
| Series | AYX-HR (High Reliability / Long Life) |
| Nominal Capacitance | 22000µF (22mF) at 100Hz |
| Rated Voltage (VN) | 63V DC |
| Capacitance Tolerance | -10% / +30% |
| ESR (Max) | 17 mΩ at 100Hz |
| Impedance (Zmax) | 13 mΩ at 10kHz |
| Rated Ripple Current | 19.7 A (55°C) / 14.1 A (85°C) |
| Dimensions (D x H) | 51mm x 105mm |
| Terminal Type | Screw Terminals |
| Standards Compliance | IEC 384-4 Long Life, CECC 30300, MIL C62D |
| Safety Features | Silicone-rubber pressure vent, Self-extinguishing sleeve |
