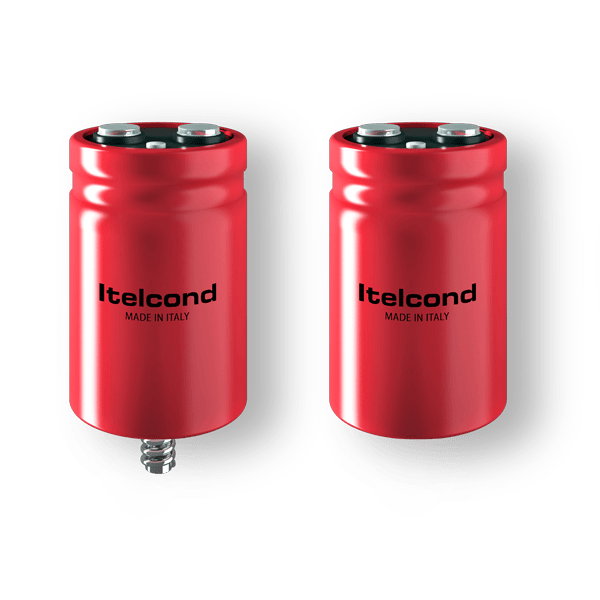

Itelcond AYX-HR Series AY(U)X-HR103X100BB1 Aluminium Electrolytic Capacitor, 10000µF 100V, Flat Bottom, Screw Terminals, High Reliability & Long Life, 50x80mm
Regular price
$800.00 USD
Regular price
Sale price
$800.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYX-HR103X100BB1 is a high-performance aluminium electrolytic capacitor engineered for demanding industrial power applications requiring exceptional reliability and extended operational life. Designed to meet IEC 384-4 "long life grade" standards, this component features a robust flat-bottom construction with secure screw terminals, making it an ideal solution for high ripple current environments such as motor drives, industrial power supplies, and renewable energy inverters.
| Product ID (MPN) | AY(U)X-HR103X100BB1 |
| Manufacturer | Itelcond |
| Series | AYX-HR (High Reliability / Long Life) |
| Nominal Capacitance | 10000 µF (10mF) at 100Hz |
| Rated Voltage (VN) | 100 VDC |
| Capacitance Tolerance | -10% / +30% |
| Rated Ripple Current | 16.5 A (100Hz, 55°C) / 11.8 A (100Hz, 85°C) |
| ESR (Typical) | 12 mΩ at 100Hz |
| Terminal Type | M5 Screw Terminals |
| Case Dimensions (DxH) | 50 mm x 80 mm (Case Code BB) |
| Mounting Type | Flat Bottom |
| Safety Standards | IEC 384-4, CECC 30300, DIN 41240 |
