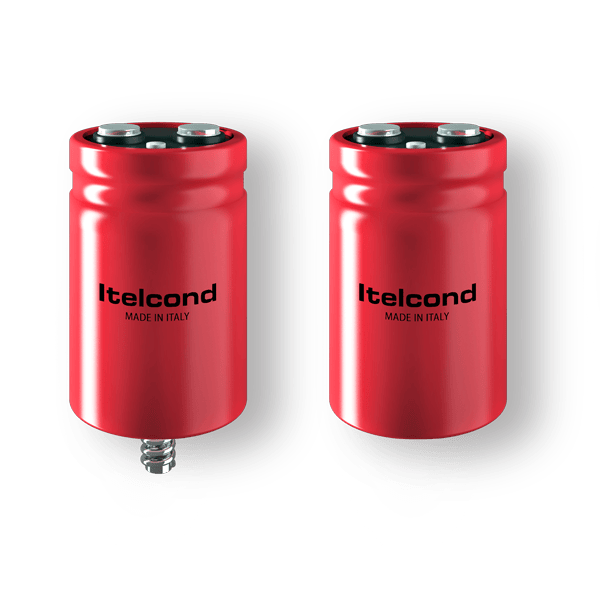

Itelcond AYX-HR Series AY(U)X-HR103X100BC1 Aluminium Electrolytic Capacitor, 10000µF 100V, Flat Bottom, Screw Terminals, High Reliability & Long Life, 50x90mm
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYX-HR series is a high-performance aluminium electrolytic capacitor engineered for demanding industrial power conversion and energy storage applications. Designed to meet IEC 384-4 "long life grade" standards, this component offers exceptional reliability, high ripple current handling, and a robust screw-terminal construction suited for heavy-duty inverters and motor drives.
| Product ID (MPN) | AY(U)X-HR103X100BC1 |
| Manufacturer | Itelcond |
| Series | AYX-HR (Long Life Grade) |
| Nominal Capacitance | 10000µF (10mF) |
| Rated Voltage (VN) | 100V DC |
| Capacitance Tolerance | -10% / +30% |
| Ripple Current (85°C) | 12.8 A @ 100Hz |
| ESR (Typical) | 11 mΩ @ 100Hz |
| Impedance (Zmax) | 8 mΩ @ 10kHz |
| Dimensions (D x H) | 50mm x 90mm |
| Case Code | BC |
| Terminal Type | Screw Terminals |
| Insulation | Self-extinguishing thermoshrinkable sleeve |
| Standards | IEC 384-4, CECC 30300, DIN 41240 |
