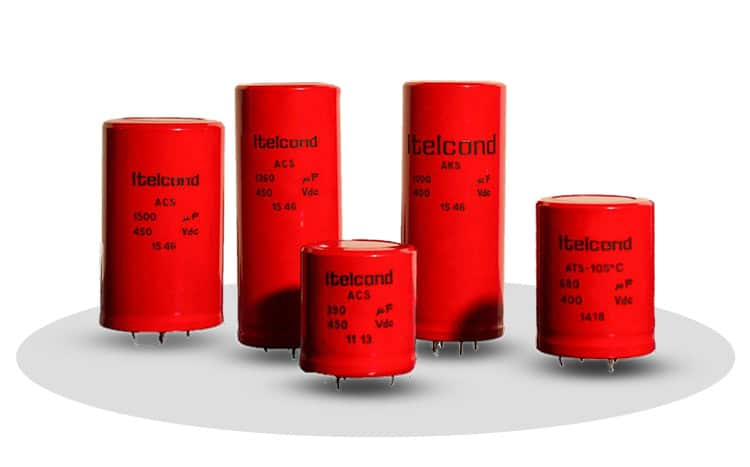

Itelcond AYUX-HR103X160DC1 AYX-HR Series Aluminium Electrolytic Capacitor, 10000uF, 160V
Regular price
$90.00 USD
Regular price
Sale price
$90.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYUX-HR103X160DC1 is a high-reliability aluminium electrolytic capacitor engineered for professional power electronics. Part of the AYX-HR series, this component features a threaded mounting stud (AYUX) for secure mechanical integration, providing a high capacitance of 10000uF at 160VDC with high ripple current capability and long-life performance for industrial UPS and inverter systems.
| Product ID (MPN) | AYUX-HR103X160DC1 |
| Series | AYX-HR (High Reliability / Mounting Stud) |
| Nominal Capacitance | 10000 uF |
| Rated Voltage (Vn) | 160 VDC |
| Surge Voltage | 185 VDC |
| Case Dimensions (DxH) | 76 x 107 mm (Case Code DC) |
| Ripple Current (@85°C/100Hz) | 17.7 A |
| ESR (Max @100Hz) | 18 mΩ |
| Zmax (@10kHz) | 13 mΩ |
| Terminal Type | M5 Screw Terminal |
| Mounting Feature | M12 Threaded Stud |
