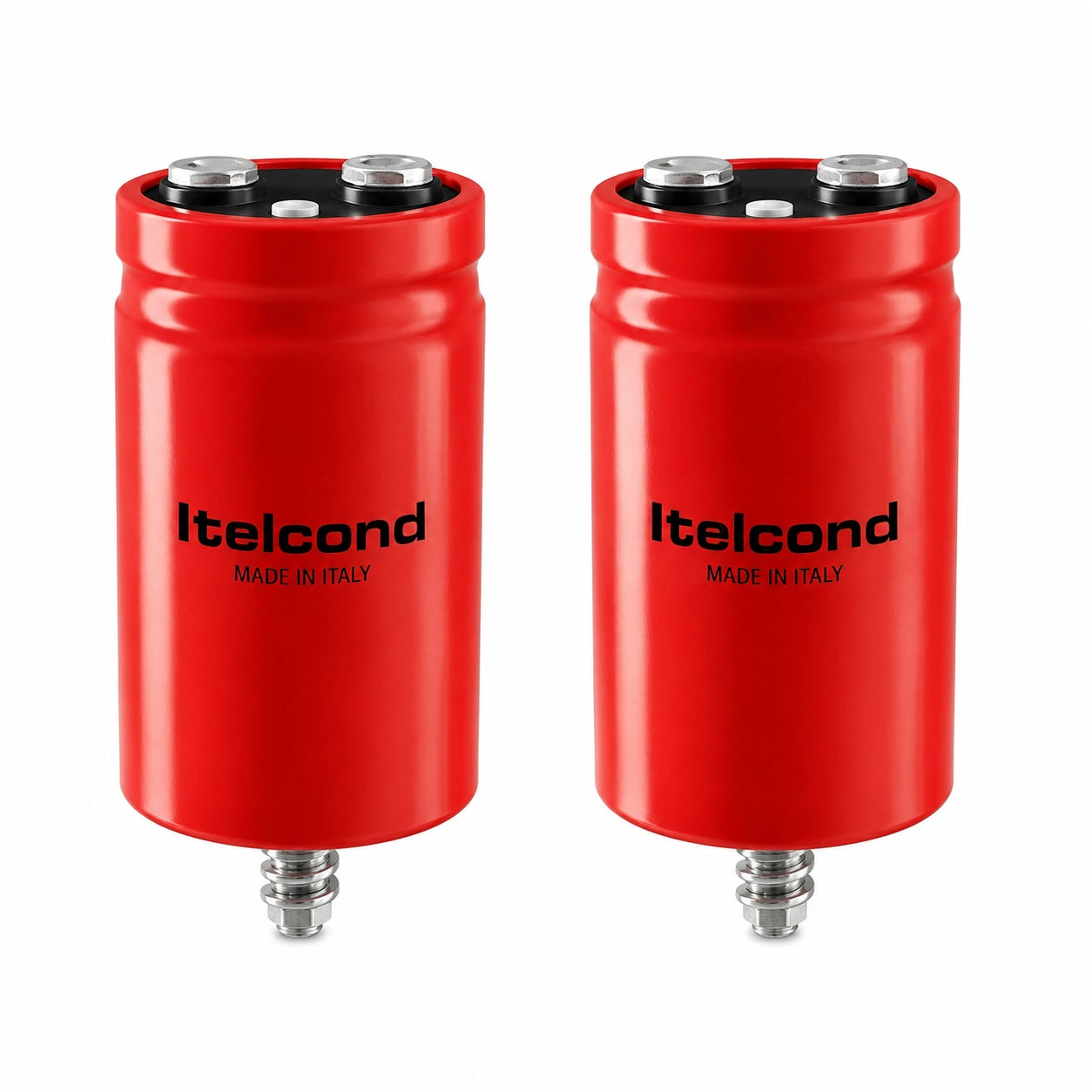

ITELCOND AYX-HR332X450DC1 Aluminium Electrolytic Capacitor, 3300µF, 450V
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ITELCOND AYX-HR332X450DC1 is an AY-HR Series aluminium electrolytic capacitor with flat-bottom construction and screw terminals. The exact 3300 µF, 450 V variant uses case code DC with a 76 x 106 mm case and is specified for high-reliability, long-life service.
| Catalogue Number | AYX-HR332X450DC1 |
| Capacitance | 3300 µF |
| Rated Voltage | 450 V |
| Case Code | DC |
| Case Dimensions | 76 x 106 mm |
| Mounting | Flat bottom |
| Terminals | Screw |
| Tan δ | 0.12 at 100 Hz |
| ESR | 58 mΩ max, 43 mΩ typ at 100 Hz |
| Impedance | 36 mΩ max at 10 kHz |
| Ripple Current | 14.3 A at 55°C; 10.2 A at 85°C, 100 Hz |
Apexon Supply provides B2B sourcing and replacement support for ITELCOND AYX-HR332X450DC1. The verified electrical ratings, case configuration, dimensions, and connection style support procurement review and technical alignment.
Send AYX-HR332X450DC1, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
