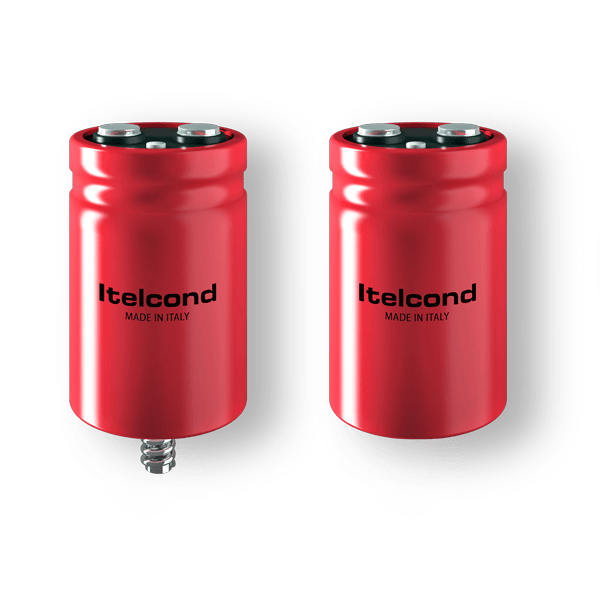

Itelcond AYUX-HR472X400DC1 AYX-HR Series Aluminium Electrolytic Capacitor, 4700uF, 400V
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYUX-HR472X400DC1 is a high-reliability aluminium electrolytic capacitor designed for professional power electronics. Part of the AYX-HR series, this component features a threaded mounting stud (AYUX) for secure mechanical integration, ensuring high ripple current capability and a long-life design suitable for demanding industrial inverter and power supply applications.
| Product ID (MPN) | AYUX-HR472X400DC1 |
| Series | AYX-HR (High Reliability / Mounting Stud) |
| Nominal Capacitance | 4700 uF |
| Rated Voltage (Vn) | 400 VDC |
| Surge Voltage | 440 VDC |
| Case Dimensions (DxH) | 76 x 107 mm (Case Code DC) |
| Ripple Current (@85°C/100Hz) | 13.6 A |
| ESR (Max @100Hz) | 58 mΩ |
| Zmax (@10kHz) | 43 mΩ |
| Terminal Type | M5 Screw Terminal |
| Climatic Category | 25/85/56 (-40°C to +85°C) |
