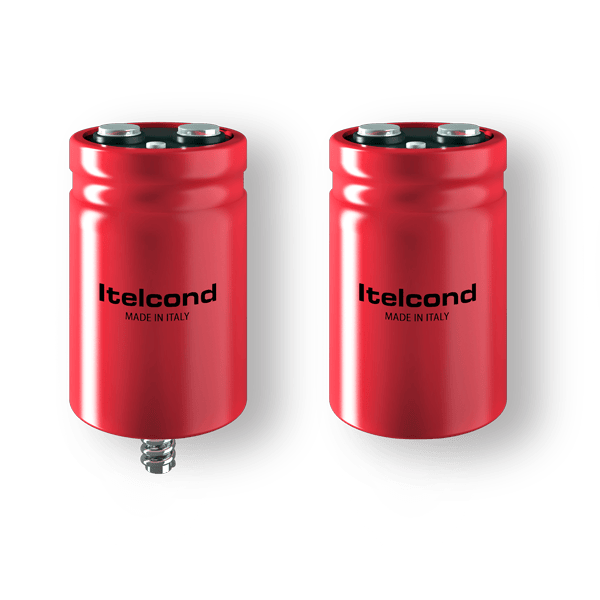

Itelcond AYUX-HR472X400DF1 AYX-HR Series Aluminium Electrolytic Capacitor, 4700uF, 400V
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYUX-HR472X400DF1 is a premium-grade aluminium electrolytic capacitor designed for high-performance industrial inverters and power supplies. As part of the AYX-HR high-reliability series, it features a mounting stud (AYUX) for superior vibration resistance and is specified for an exceptional service life in demanding thermal environments.
| Product ID (MPN) | AYUX-HR472X400DF1 |
| Series | AYX-HR (High Reliability / Long Life) |
| Nominal Capacitance | 4700 uF |
| Rated Voltage (Vn) | 400 VDC |
| Case Dimensions (DxH) | 76 x 147 mm (Case Code DF) |
| Ripple Current (@85°C/100Hz) | 15.4 A |
| ESR (Max @100Hz) | 30 mΩ |
| Zmax (@10kHz) | 23 mΩ |
| Mounting Feature | M12 Threaded Mounting Stud |
| Terminal Type | M5 Screw Terminals |
| Temperature Range | -40°C to +85°C |
