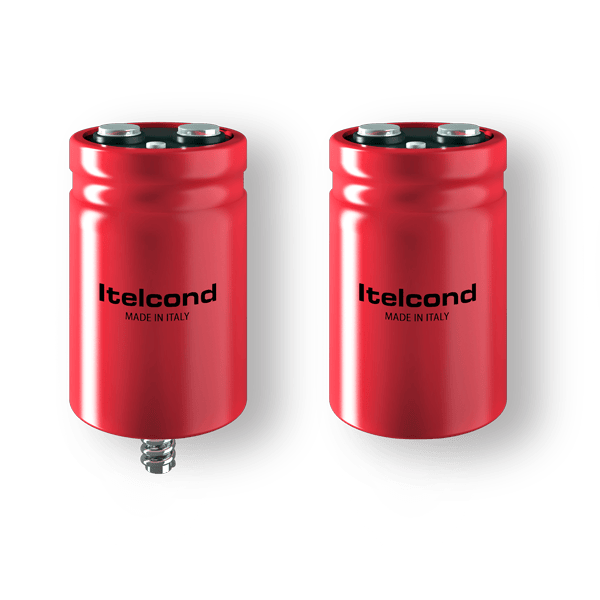

Itelcond AYUX-HR472X500DF1 AYX-HR Series Aluminium Electrolytic Capacitor, 4700uF, 500V
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYUX-HR472X500DF1 is a heavy-duty aluminium electrolytic capacitor designed for high-voltage industrial applications requiring maximum reliability. Part of the AYX-HR series, this component features a threaded mounting stud (AYUX) for secure chassis orientation and is optimized for long-life performance in power conversion systems operating up to 500VDC.
| Product ID (MPN) | AYUX-HR472X500DF1 |
| Series | AYX-HR (High Reliability / Mounting Stud) |
| Nominal Capacitance | 4700 uF |
| Rated Voltage (Vn) | 500 VDC |
| Surge Voltage | 525 VDC |
| Case Dimensions (DxH) | 76 x 147 mm (Case Code DF) |
| Ripple Current (@85°C/100Hz) | 13.3 A |
| ESR (Max @100Hz) | 41 mΩ |
| Zmax (@10kHz) | 30 mΩ |
| Terminal Thread | M5 Screw |
| Operating Life | Up to 150,000 hrs (Voltage/Temperature dependent) |
