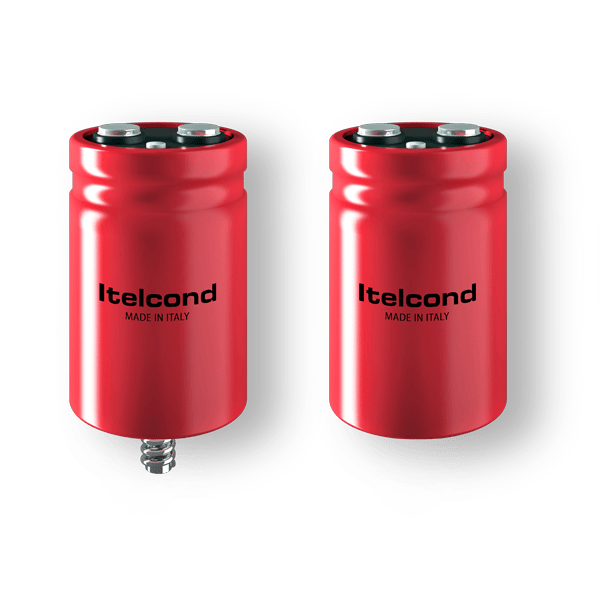

Itelcond AY(U)X-HR682X200DC1 Aluminium Electrolytic Capacitor, 6800 µF, 200 V DC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Itelcond AY(U)X-HR682X200DC1 is an AYX-HR Series aluminium electrolytic capacitor with 6800 µF capacitance and 200 V DC rated voltage. This screw-terminal capacitor is listed with DC case code, 76 mm diameter, 107 mm height, and ripple-current ratings for industrial power and energy applications.
| Brand | Itelcond |
| Series | AYX-HR Series |
| Part Number | AY(U)X-HR682X200DC1 |
| Product Category | Aluminium electrolytic capacitor |
| Capacitance | 6800 µF at 100 Hz |
| Rated Voltage | 200 V DC |
| Case Code | DC |
| Dimensions | 76 mm diameter x 107 mm height |
| Tanδ | 0.10 at 100 Hz |
| ESR | 23 mΩ max, 19 mΩ typical at 100 Hz |
| Impedance | 18 mΩ max at 10 kHz |
| Ripple Current | 21.4 A at 55°C, 15.3 A at 85°C, 100 Hz |
| Terminals | Screw terminals |
| Operating Temperature | -25°C to +85°C |
| Climatic Category | 25/85/56 |
| Capacitance Tolerance | X = -10% / +30% |
| Construction | Aluminium case, EPR gasket sealing, silicone-rubber pressure release vent, self-extinguishing thermoshrinkable sleeve |
Typical applications include capacitor use in industrial power electronics, energy storage, filtering, and high-ripple DC circuits where the verified capacitance, voltage, ESR, ripple-current rating, terminal style, and case dimensions match the equipment requirement.
Apexon Supply supports B2B sourcing and replacement review for Itelcond AYX-HR Series aluminium electrolytic capacitors. Buyers should confirm the exact part number, mounting configuration, capacitance, voltage rating, case size, terminal style, and ripple-current requirements before replacement.
Send the MPN, required quantity, and application details to request a B2B quote and technical alignment support. Most qualified RFQs receive a response or quote within 12 hours.
