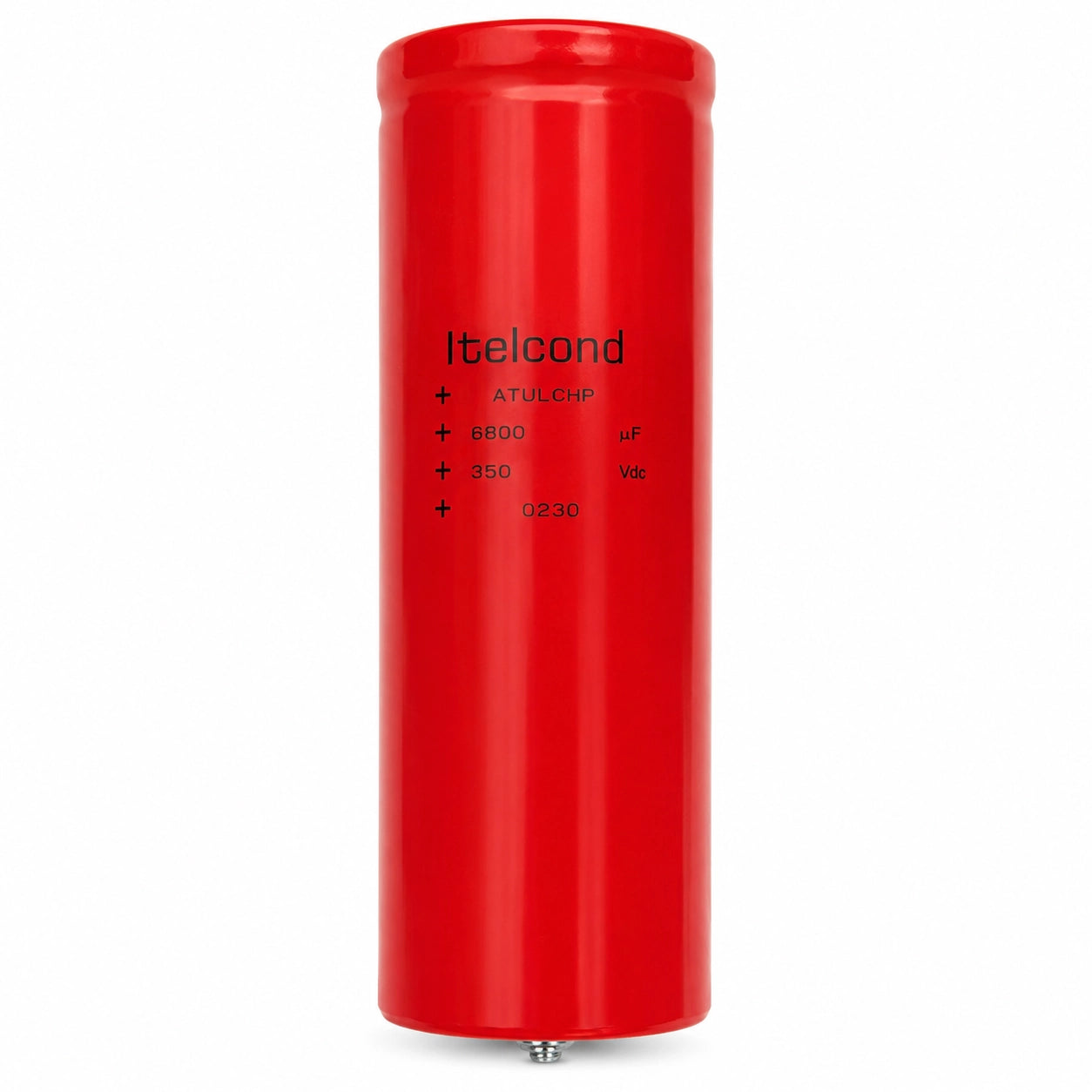

Itelcond AY(U)X-HR682X350EC1 Aluminium Electrolytic Capacitor, 6800µF 350V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Itelcond AY(U)X-HR682X350EC1 is an AYX-HR series aluminium electrolytic capacitor rated at 6800µF and 350V for industrial power electronics, DC filtering, energy storage, and high-ripple applications. This flat-bottom capacitor uses screw terminals and a 90mm x 125mm aluminium case for secure integration into power supplies, drives, conversion systems, and maintenance replacement projects.
| Product ID / MPN | AY(U)X-HR682X350EC1 |
| Brand / Series | Itelcond AYX-HR Series |
| Category | Aluminium Electrolytic Capacitor |
| Capacitance | 6800µF at 100Hz |
| Rated Voltage | 350V |
| Capacitance Tolerance | -10% / +30% |
| Tanδ at 100Hz | 0.15% max. |
| ESR at 100Hz | 2.5 mΩ max. |
| Impedance at 10kHz | 1.2 mΩ max. |
| Rated Ripple Current | 42.0 A at 100Hz, 85°C |
| Maximum Leakage Current | 9520 µA at 25°C, 5 minutes |
| Operating Leakage Current | 2380 µA at 25°C, 5 minutes |
| Case Type | Flat bottom |
| Terminals | Screw type |
| Dimensions | 90mm diameter x 125mm height |
| Case Code | EC1 |
| Case Material | Aluminium |
| Sleeve | Self-extinguishing thermoshrinkable sleeve |
| Sealing | Hermetic sealing with EPR gasket and resin cover |
| Pressure Release Vent | Silicone-rubber vent |
| Operating Temperature | -25°C to +85°C |
| Climatic Category | 25/85/56 |
| Standards | CECC 30300; IEC 384-4 long life grade; MIL C62D; DIN 41240 / DIN45910 |
Typical applications include industrial power supplies, motor drives and controls, welding equipment, high-power conversion systems, inverter systems, renewable energy equipment, and DC filtering circuits requiring high capacitance and screw-terminal construction.
Apexon Supply provides B2B sourcing support for Itelcond AY(U)X-HR682X350EC1 capacitor replacement projects, procurement review, and technical alignment. Buyers should confirm capacitance, voltage, ripple current, terminal style, case size, and operating conditions against the original equipment requirements before replacement.
Send the MPN, required quantity, and application details to request RFQ support for this Itelcond AYX-HR series aluminium electrolytic capacitor. Most qualified RFQs receive a response or quote within 12 hours. [oai_citation:0‡apexon-gpts-knowledge.txt](sediment://file_00000000ec84722f898ea9202e5d40de)
