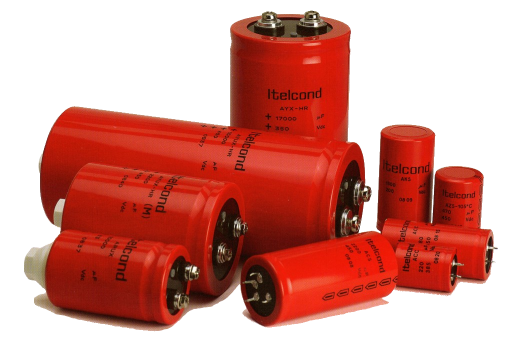

Itelcond AYUX-HR682X400DF1 AYX-HR Series Aluminium Electrolytic Capacitor, 6800uF, 400V
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AYUX-HR682X400DF1 is a heavy-duty electrolytic capacitor engineered for high-performance industrial power applications. Part of the AYX-HR high-reliability series, it features a threaded mounting stud (AYUX) for secure mechanical stability and is designed to handle high ripple currents while maintaining an extended operating life in demanding thermal environments.
| Product ID (MPN) | AYUX-HR682X400DF1 |
| Series | AYX-HR (High Reliability / Mounting Stud) |
| Nominal Capacitance | 6800 uF |
| Rated Voltage (Vn) | 400 VDC |
| Surge Voltage | 440 VDC |
| Case Dimensions (DxH) | 76 x 147 mm (Case Code DF) |
| Ripple Current (@85°C/100Hz) | 19.6 A |
| ESR (Max @100Hz) | 19 mΩ |
| Zmax (@10kHz) | 14 mΩ |
| Termination Thread | M5 Screw |
| Climatic Category | 25/85/56 |
