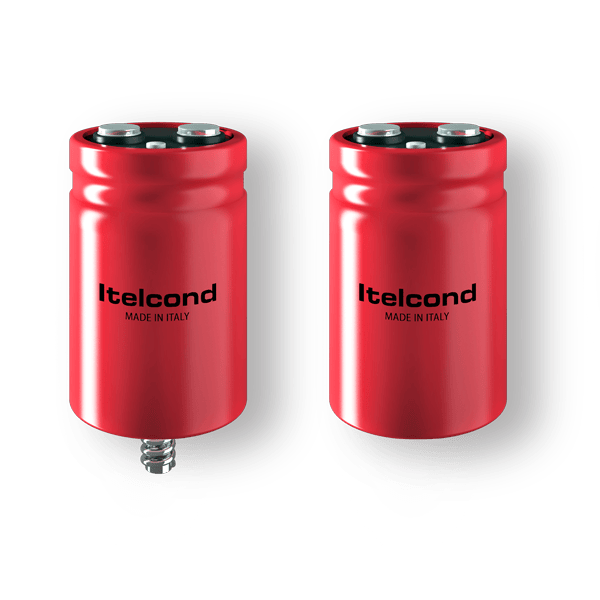

Itelcond AY(U)X-HR682X500DJ1 Aluminium Electrolytic Capacitor, 6800µF, 500V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Itelcond AY(U)X-HR682X500DJ1 is an AYX-HR series aluminium electrolytic capacitor rated at 6800µF and 500V. This long life grade screw terminal capacitor features a flat bottom case design, 100 x 145 mm dimensions, and rated ripple current of 32.5 A at 100Hz and 85°C for industrial power electronics applications.
| Product ID / MPN | AY(U)X-HR682X500DJ1 |
| Brand | Itelcond |
| Series | AYX-HR |
| Product Type | Aluminium electrolytic capacitor |
| Capacitance | 6800µF |
| Rated Voltage | 500V |
| Capacitance Tolerance | -10% / +30% |
| Dimensions | 100 x 145 mm |
| Case Code | DJ |
| Mounting Style | Flat bottom |
| Terminal Type | Screw terminals |
| ESR Typical @100Hz | 10 mΩ |
| Ripple Current @100Hz 85°C | 32.5 A |
| Operating Temperature Range | -25°C to +85°C |
| Standards | IEC 384-4; CECC 30300; DIN 41240 |
Typical applications include motor drives, heavy-duty inverters, industrial welding equipment, industrial power supplies, and DC filtering circuits requiring a high capacitance screw terminal aluminium electrolytic capacitor with 500V rated voltage.
Apexon Supply supports B2B sourcing and replacement review for Itelcond AYX-HR series capacitors. Buyers should verify capacitance, rated voltage, ripple current, ESR, dimensions, terminal type, mounting style, and operating conditions against the original equipment requirements before replacement.
Send the MPN, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
