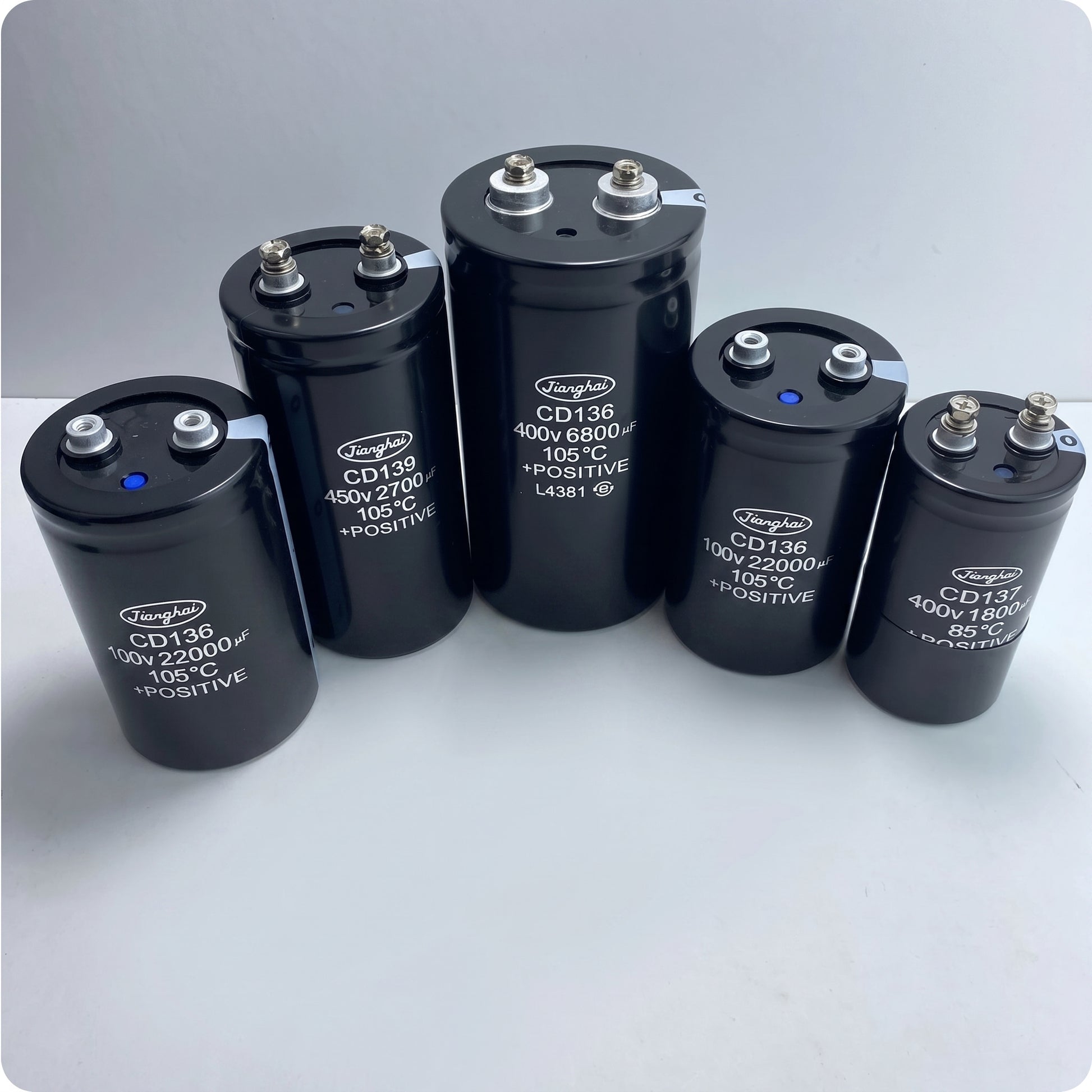

Jianghai CD136 PK Series 2700μF 400V Screw Terminal Aluminum Electrolytic Capacitor (P/N: ECG2GPK272MD115)
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Jianghai CD136 PK series is a high-capacity screw terminal aluminum electrolytic capacitor engineered for high-reliability industrial power systems. Designed to withstand demanding thermal conditions, it provides a 2000-hour service life at 105°C and features exceptionally low ESR and high ripple current handling, making it an ideal choice for professional-grade inverters, industrial motor controls, and large-scale power supplies.
| Product ID (MPN) | ECG2GPK272MD115 |
| Series | CD 136 PK |
| Nominal Capacitance | 2700 μF |
| Rated Voltage | 400 V |
| Surge Voltage | 450 V |
| Capacitance Tolerance | ± 20% (20°C, 120Hz) |
| Typical ESR | 22 mΩ (20°C, 120Hz) |
| Rated Ripple Current | 8.3 Arms (105°C, 120Hz) |
| Dimensions (ΦDxL) | 64 x 115 mm |
| Operating Temperature | -25 to +105 °C |
| Load Life | 2000 hours @ 105°C |
| Compliance | RoHS Compliant |
