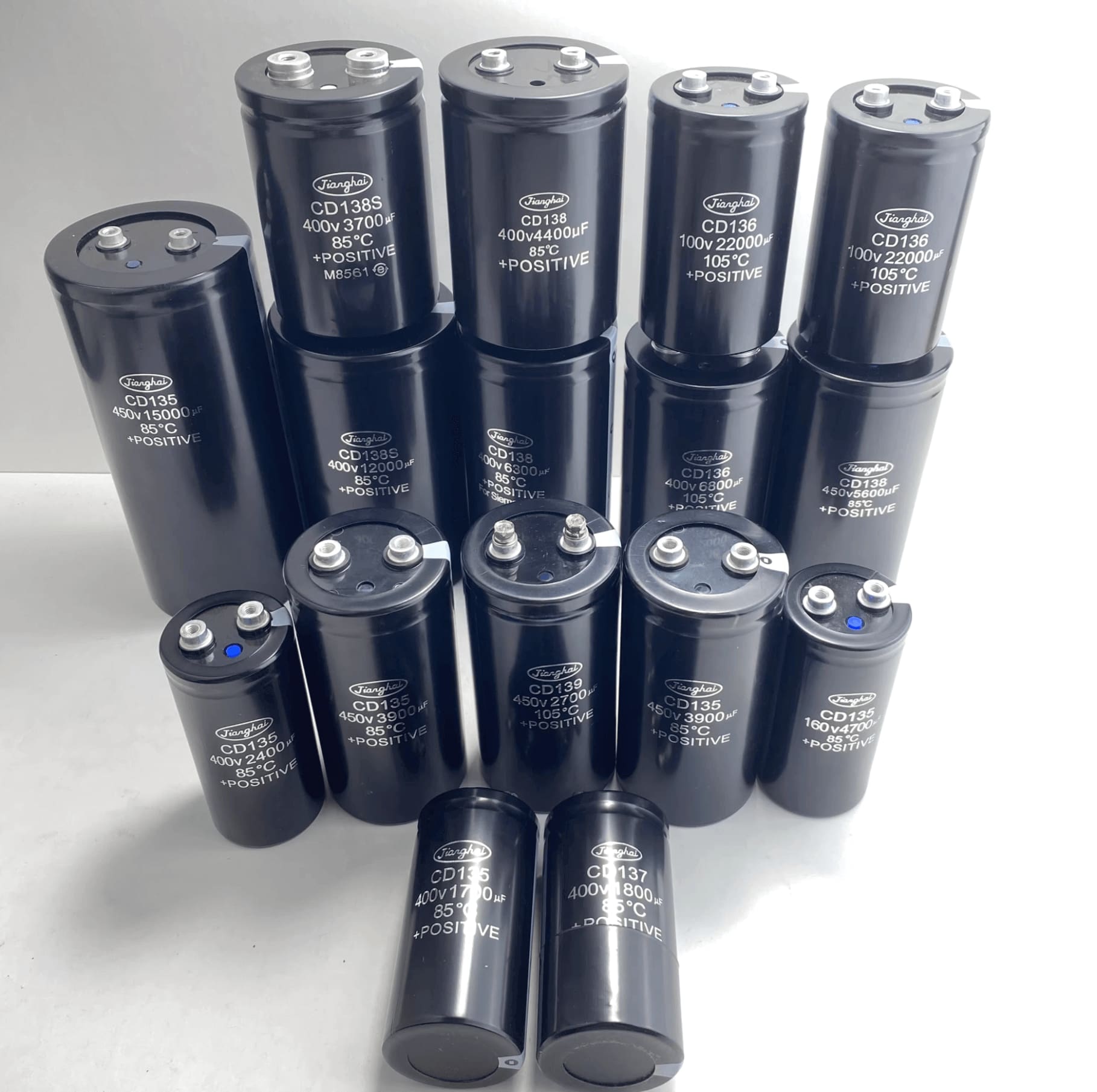

Jianghai CD136 PK Series 22000μF 80V Screw Terminal Aluminum Electrolytic Capacitor (P/N: ECG1KPK223MD096)
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Jianghai ECG1KPK223MD096 is a high-performance screw terminal aluminum electrolytic capacitor from the CD 136 PK series, designed for demanding industrial applications such as professional inverters and power supplies. This component features a high capacitance of 22000μF at 80V, offering a long service life of 2000 hours at 105°C and a robust ripple current handling capability of 8.2 Arms.
| Product ID (MPN) | ECG1KPK223MD096 |
| Product Series | CD 136 PK |
| Capacitance | 22000 μF |
| Rated Voltage | 80 VDC |
| Surge Voltage | 100 VDC |
| Capacitance Tolerance | ± 20% (20°C, 120Hz) |
| Rated Ripple Current | 8.2 Arms (105°C, 120Hz) |
| Typical ESR | 8 mΩ (20°C, 120Hz) |
| Dissipation Factor | 0.25 (20°C, 120Hz) |
| Operating Temperature Range | -40°C to +105°C |
| Lifetime | 2000 hours (at 105°C) |
| Dimensions (ΦD x L) | 64 x 96 mm |
| Terminal Type | Screw Terminal |
