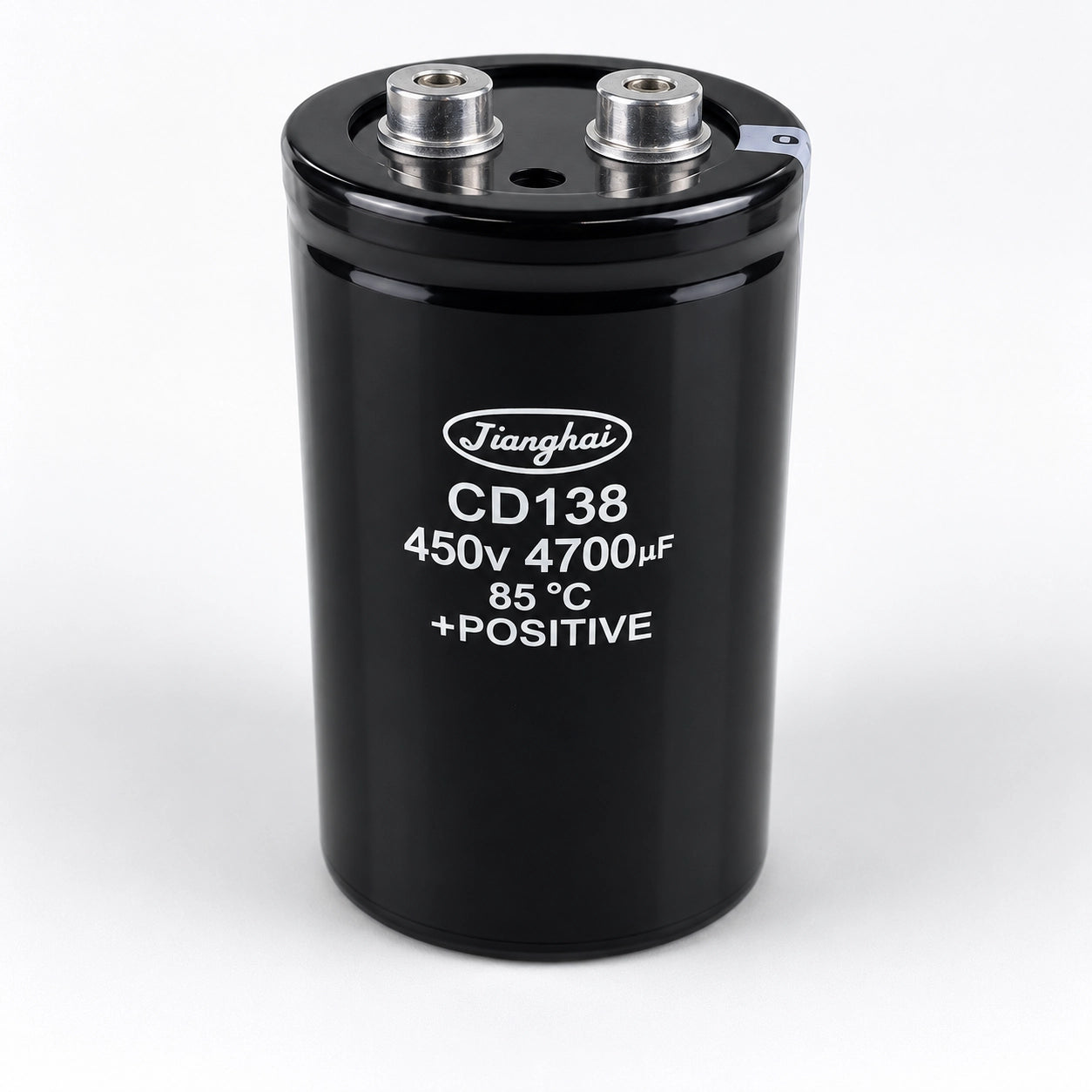

JiangHai ECG2WPC472ME130 CD138 Capacitor, 450 VDC, 4700 uF
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The JiangHai ECG2WPC472ME130 is a CD138 PC Series aluminum electrolytic capacitor with screw terminals for industrial power electronics, inverter systems, DC-link filtering, energy storage, and professional power applications. This 450 VDC, 4700 uF capacitor supports procurement review, replacement sourcing, and technical comparison for B2B industrial maintenance and power system requirements.
| Product ID / MPN | ECG2WPC472ME130□□ |
| Brand / Series / Category | JiangHai / CD 138 PC Series / Aluminum electrolytic capacitor |
| Main Electrical Ratings | 450 VDC rated voltage; 500 VDC surge voltage; 4700 uF capacitance; 15.60 Arms rated ripple current at 85C 120Hz |
| Capacitance / ESR | +/-20% at 20C 120Hz; max ESR 46 mohm at 20C 120Hz; typical ESR 16 mohm at 20C 120Hz |
| Mechanical Specs | 77 mm diameter x 130 mm length; diameter code E |
| Mounting / Terminal / Connection | Screw terminals; B bolt mounting, Y bracket, I bracket, or N no bracket options; + terminals |
| Environmental Ratings | Operating temperature range: -40C to +85C |
| Standards / Certifications | RoHS compliant |
| Installation Notes | Verify rated voltage, surge voltage, capacitance, ESR, ripple current, terminal style, mounting option, polarity, dimensions, and application requirements before replacement. |
Typical applications include professional power equipment, inverter systems, DC-link circuits, power supplies, energy storage sections, and filtering circuits requiring long-life, high-current aluminum electrolytic capacitors.
Apexon Supply supports B2B sourcing and replacement review for JiangHai ECG2WPC472ME130 capacitor requirements, including technical alignment by voltage, capacitance, ESR, ripple current, terminal configuration, mounting style, and original equipment needs.
Send the MPN, required quantity, and application details to request a B2B quote and confirm sourcing options for this capacitor.
