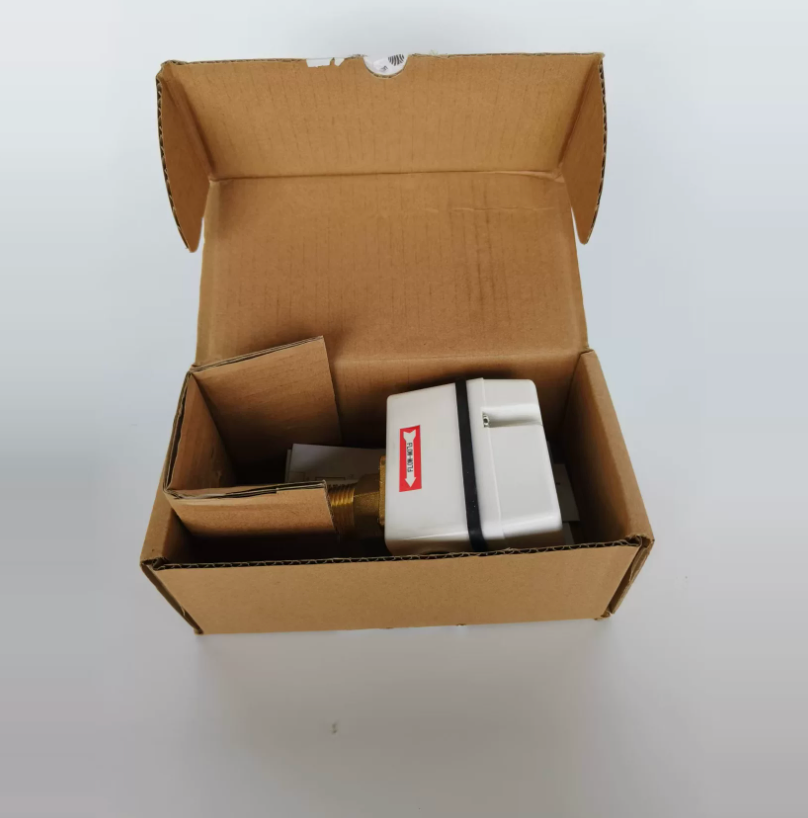

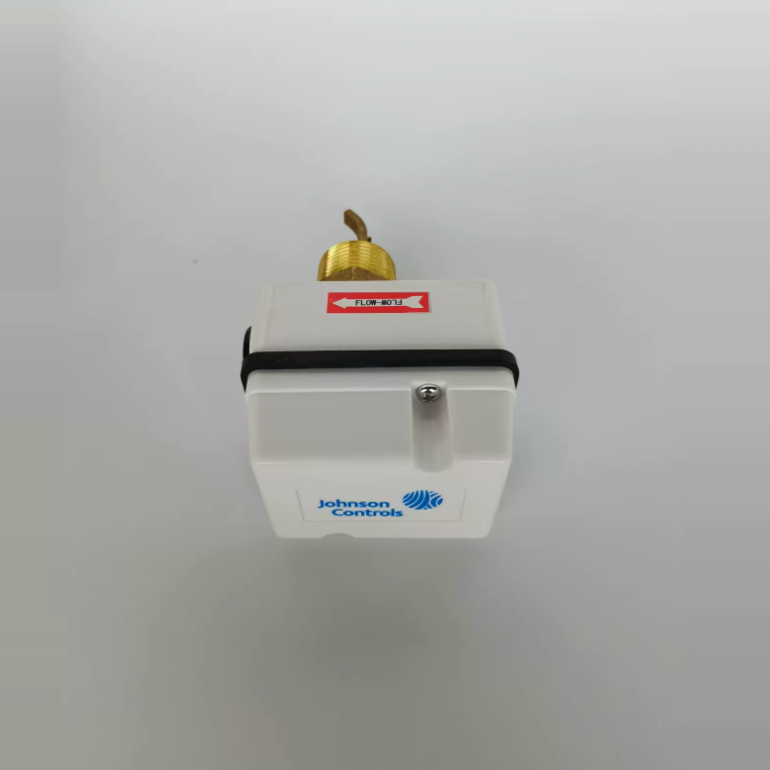

Johnson Controls FS80-C Liquid Flow Switch, SPDT, IP55, 1.5 MPa
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Johnson Controls FS80-C is a robust Single-Pole, Double-Throw (SPDT) liquid flow switch designed to detect fluid flow changes in systems carrying water, ethylene glycol, and other non-hazardous fluids. Engineered for pipes larger than 1-inch in diameter, it features a versatile four-piece segmented paddle system and installs via a standard 1-11 1/2 NPT connection. With a durable IP55 enclosure and an operating capacity up to 1.5 MPa fluid pressure, this electrical control provides essential equipment protection by interlocking with chillers, pumps, or alarms based on precise flow rates.
| Product ID (MPN) | FS80-C |
| Switch Action | Single-Pole, Double-Throw (SPDT) |
| Compatible Fluids | Water, Ethylene Glycol, Non-hazardous fluids |
| Full Load Amperes | 16 A (110VAC) / 8 A (220VAC) |
| Locked Rotor Amperes | 96 A (110VAC) / 48 A (220VAC) |
| Pilot Duty | 125VA at 24~277VAC |
| Maximum Fluid Pressure | 1.5 MPa |
| Maximum Velocity | 3 m/sec |
| Pipe Connection | 1-11 1/2 NPT |
| Minimum Pipe Size | 1-inch trade size |
| Paddle Segments Included | 1 in., 2 in., 3 in., 6 in. |
| Conduit Connection Size | Ø5~Ø12 mm (Hole) |
| Fluid Temperature Range | -25°C to 110°C |
| Ambient Temperature Range | -20°C to 60°C |
| Enclosure Protection Rating | IP55 |
