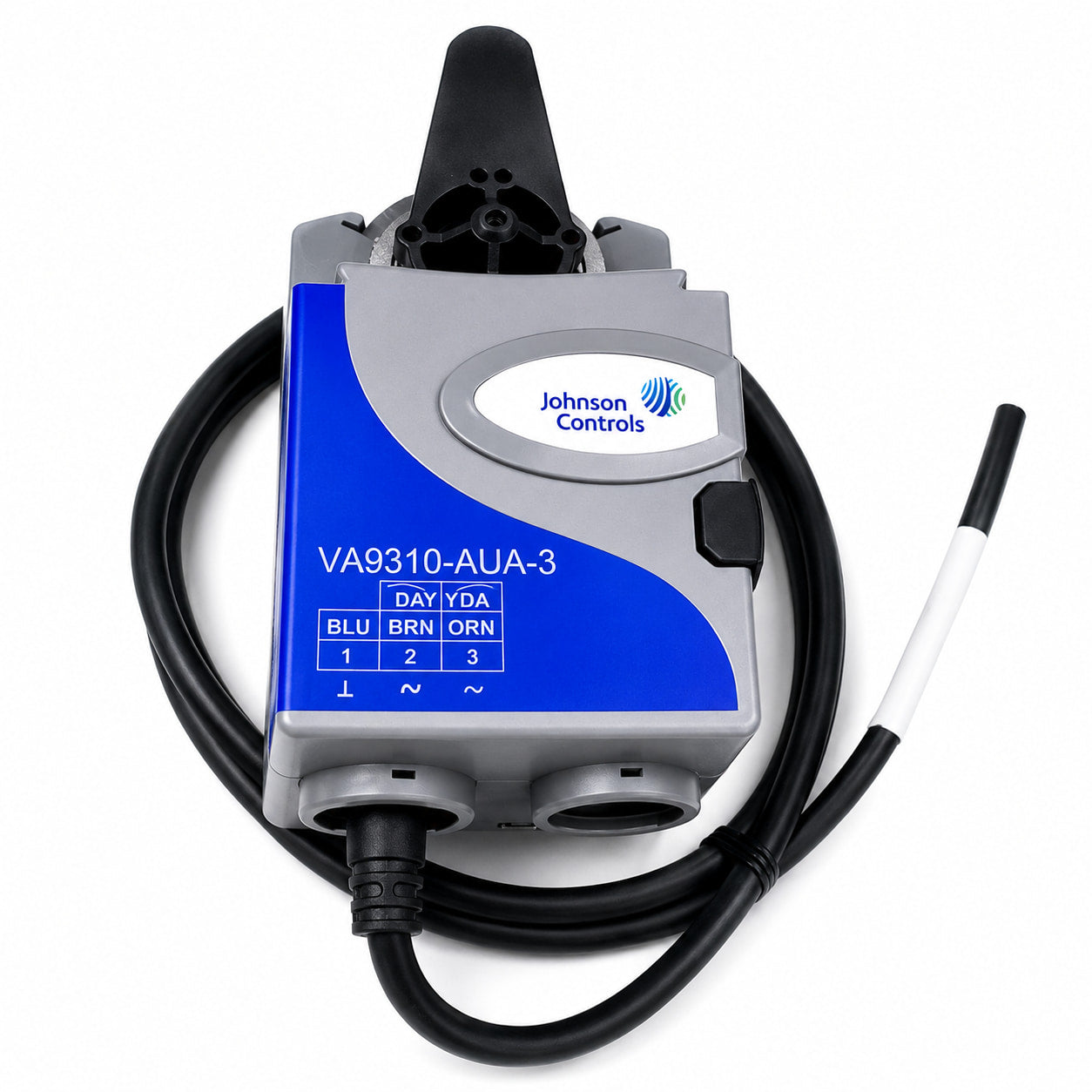

Johnson Controls VA9310-AUA-3 VA9300 Series Electric Non-Spring Return Valve Actuator, AC 220 V, 10 N·m
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Johnson Controls VA9310-AUA-3 is a VA9300 Series electric non-spring return valve actuator designed for HVAC valve control with AC 220 V line voltage. It supports on/off and floating control modes, providing reliable torque and runtime for VG1000 Series ISO-flange valve assemblies in building automation and industrial applications.
| Product ID (MPN) | VA9310-AUA-3 |
| Series | VA9300 Series |
| Product Type | Electric non-spring return valve actuator |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Running Torque | 90 lb·in. / 10 N·m |
| Rotation Range | Mechanically limited to 95° ±3° |
| Rotation Time | 90 seconds for 90° travel |
| Control Modes | On/off, floating |
| Electrical Connection | 48 in. / 1.2 m halogen-free cable, 18 AWG (0.82 mm²) with 6 mm ferrule ends |
| Conduit Connection | 1/2 in. NPSM threaded conduit connectors with optional M9300-100 connector |
| Enclosure Rating | IP54 / NEMA 5 |
| Operating Ambient Temperature | -22°F to 140°F / -30°C to 60°C, 95% RH noncondensing |
| Compliance | UL Listed, CE Mark, RCM |
| Mounting | Direct mount for valves with ISO flange mounting, including VG1000 Series valves |
