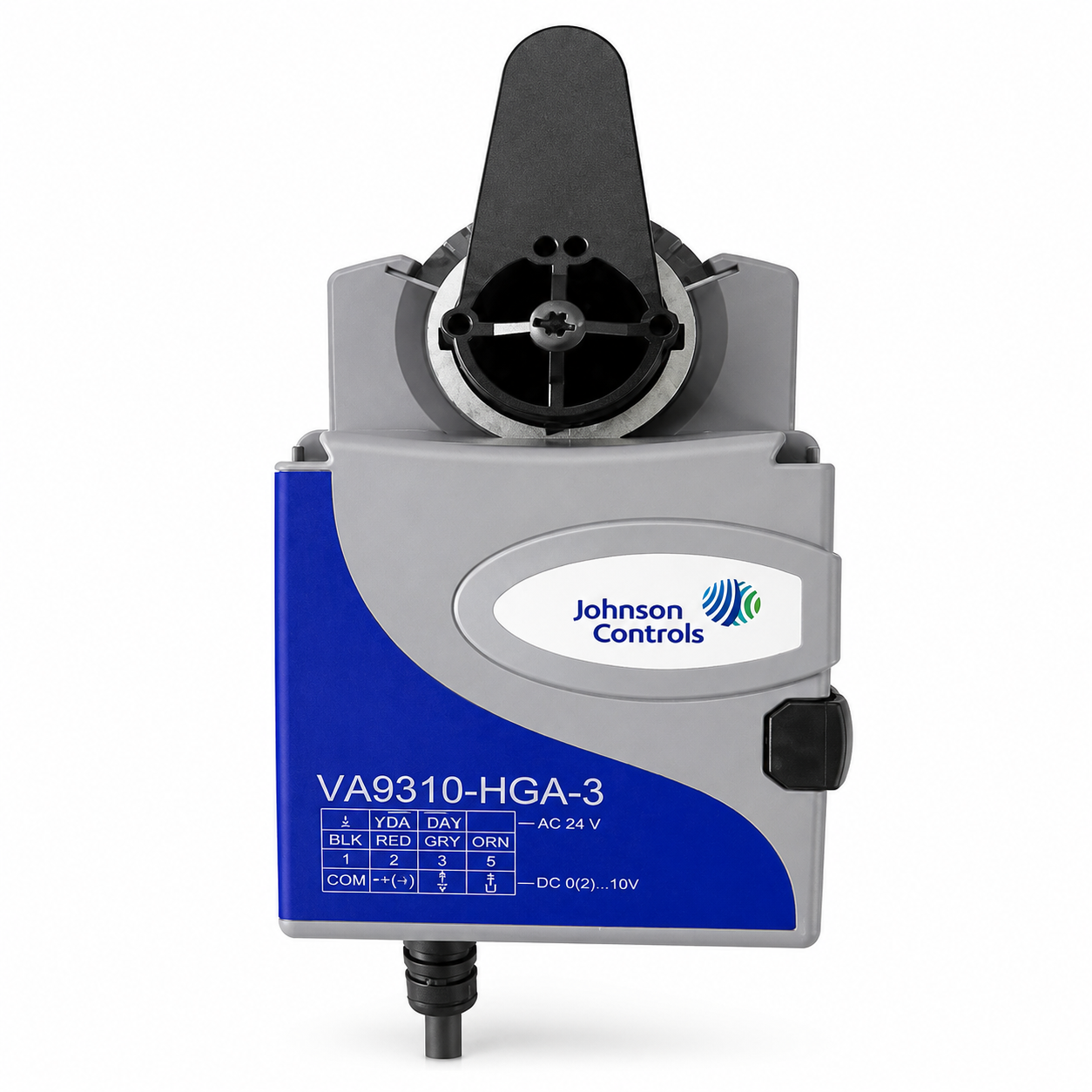

Johnson Controls VA9310-HGA-3 VA9300 Series Electric Non-Spring Return Valve Actuator, AC/DC 24 V, 10 N·m
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Johnson Controls VA9310-HGA-3 is a VA9300 Series electric non-spring return valve actuator for HVAC valve control applications. It supports on/off, floating, and proportional control modes with automatic input signal detection, providing a procurement-ready actuator option for VG1000 Series ISO-flange valve assemblies.
| Product ID (MPN) | VA9310-HGA-3 |
| Series | VA9300 Series |
| Product Type | Electric non-spring return valve actuator |
| Power Supply | AC/DC 24 V |
| AC Power Requirement | AC 24 V ±20% at 50/60 Hz, 4.7 VA running |
| DC Power Requirement | DC 24 V ±10%, 1.3 W running |
| Transformer Sizing | ≥6.5 VA |
| Control Modes | On/off, floating, proportional |
| Input Signal | DC 0(2) to 10 V or 0(4) to 20 mA with field-furnished 500 ohm resistor |
| Feedback Signal | DC 0(2) to 10 V in proportional mode |
| Rated Torque | 90 lb·in. / 10 N·m |
| Rotation Range | Mechanically limited to 95° ±3° |
| Rotation Time | 35 seconds for 90° travel |
| Electrical Connection | 120 in. / 3.05 m UL 444 type CMP plenum-rated cable, 19 AWG conductors |
| Enclosure Rating | IP54 / NEMA 5 |
| Operating Ambient Temperature | -22°F to 140°F / -30°C to 60°C, 95% RH noncondensing |
| Compliance | UL Listed, CE Mark, RCM |
| Mounting | Direct mount for valves with ISO flange mounting, including VG1000 Series valves |
