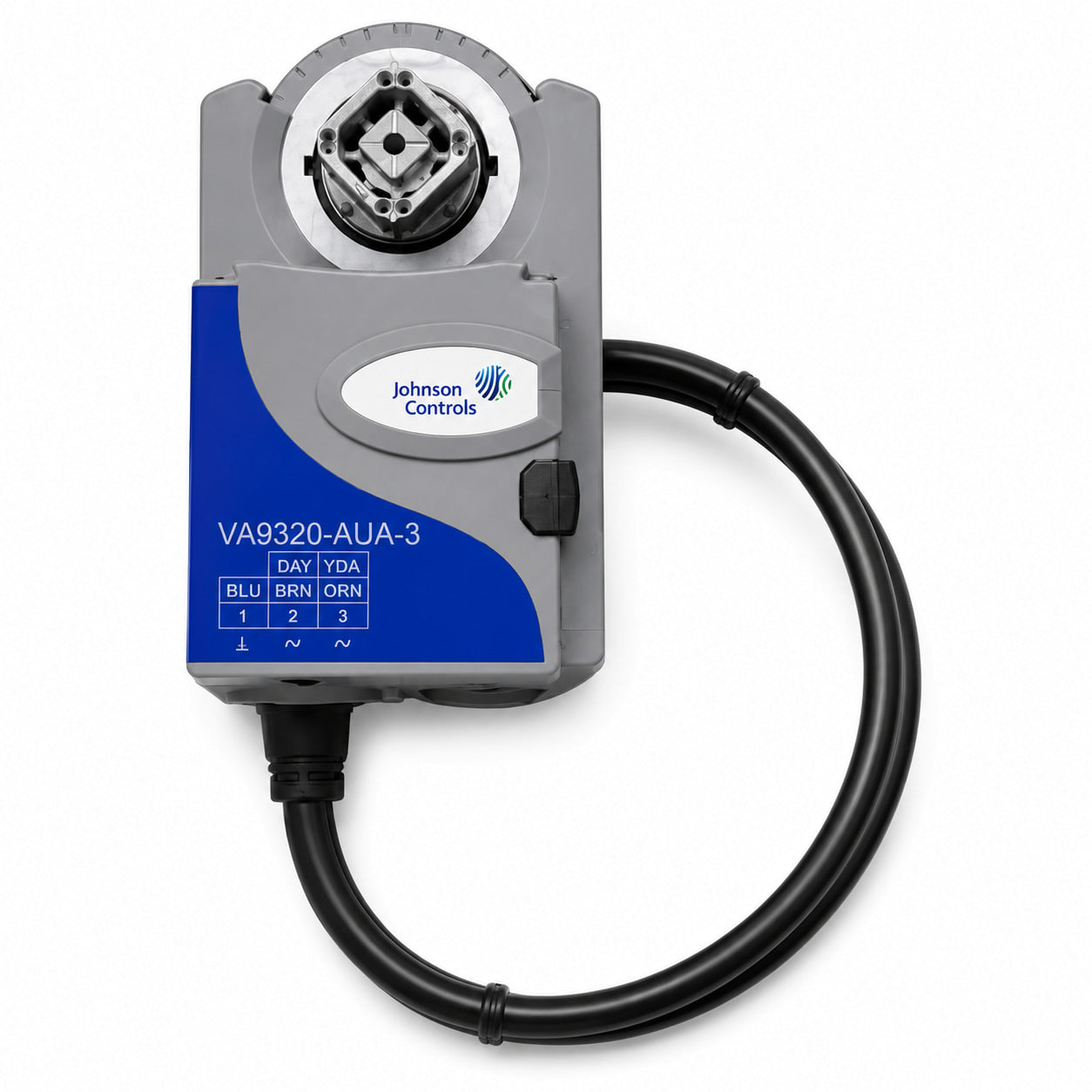

Johnson Controls VA9320-AUA-3 VA9300 Series Electric Non-Spring Return Valve Actuator, AC 220 V, 20 N·m
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Johnson Controls VA9320-AUA-3 is a VA9300 Series electric non-spring return valve actuator designed for on/off and floating control in HVAC valve applications. It is compatible with VG1000 Series valves and provides reliable 20 N·m torque with precise rotation, suitable for industrial and building automation systems.
| Product ID (MPN) | VA9320-AUA-3 |
| Series | VA9300 Series |
| Product Type | Electric non-spring return valve actuator |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Running Torque | 180 lb·in. / 20 N·m |
| Rotation Range | Mechanically limited to 95° ±3° |
| Rotation Time | 90 seconds for 90° travel |
| Control Modes | On/off, floating |
| Electrical Connection | 48 in. / 1.2 m halogen free cable with 18 AWG conductors, 6 mm ferrule ends |
| Conduit Connection | 1/2 in. NPSM threaded conduit with optional M9300-100 connector |
| Enclosure Rating | IP54 / NEMA 5 |
| Operating Ambient Temperature | -22°F to 140°F / -30°C to 60°C, 95% RH noncondensing |
| Compliance | UL Listed, CE Mark, RCM |
| Mounting | Direct mount for VG1000 Series valves with ISO flange |
