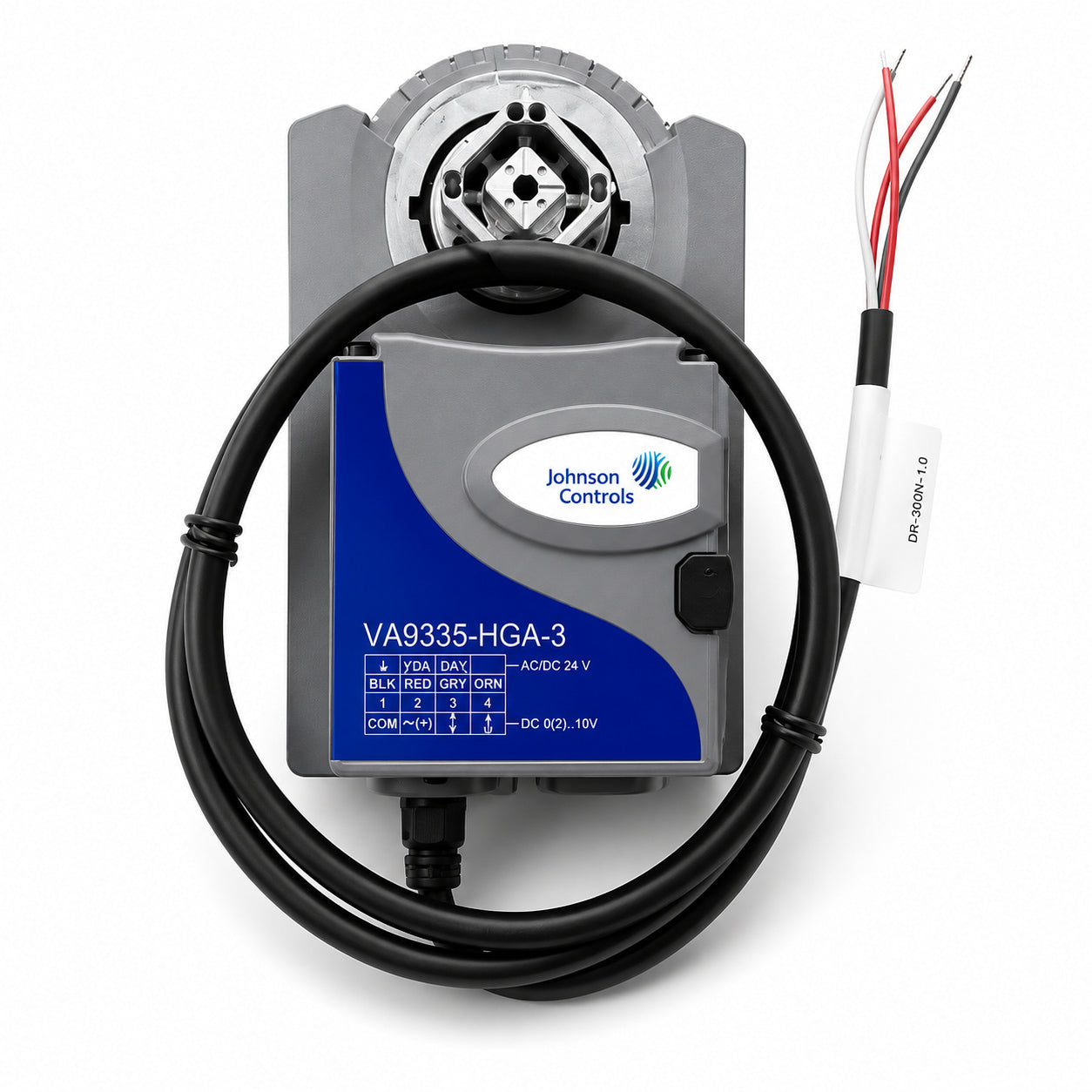

Johnson Controls VA9335-HGA-3 VA9300 Series Electric Non-Spring Return Valve Actuator, AC/DC 24 V, 35 N·m
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Johnson Controls VA9335-HGA-3 is a VA9300 Series electric non-spring return valve actuator for HVAC valve control applications. It supports on/off, floating, and proportional control with automatic input signal detection, making it suitable for procurement replacement, retrofit, and system integration work on compatible valve assemblies.
| Product ID (MPN) | VA9335-HGA-3 |
| Series | VA9300 Series |
| Product Type | Electric non-spring return valve actuator |
| Power Supply | AC/DC 24 V |
| AC Power Requirement | AC 24 V, AC 19.2 V to 28.8 V at 50/60 Hz, 6.1 VA running |
| DC Power Requirement | DC 24 V, DC 21.6 V to 26.4 V, 2.1 W running |
| Transformer Sizing | ≥7 VA |
| Control Modes | On/off, floating, proportional |
| Input Signal | DC 0(2) to 10 V or 0(4) to 20 mA with field-furnished 500 ohm 1/4 W resistor |
| Input Adjustment | Offset DC 0 V to 10 V; span DC 2 V to 10 V |
| Control Impedance | 4.7 kΩ on/off and floating; 100 kΩ proportional |
| Feedback Signal | DC 0(2) to 10 V in proportional mode |
| Running Torque | 310 lb·in. / 35 N·m |
| Rotation Range | Mechanically limited to 35° to 95° ±3° in 5° increments |
| Rotation Time | 150 seconds for 90° travel |
| Auto-Calibration Time | 75 seconds |
| Duty Life | 30,000 full-stroke cycles; 750,000 repositions |
| Audible Noise | <35 dBA at 0 lb·in. to 90 lb·in. load, measured at 1 m |
| Electrical Connection | 120 in. / 3.05 m UL 444 type CMP plenum-rated cable with 19 AWG conductors and 0.25 in. ferrule ends |
| Conduit Connection | 1/2 in. NPSM threaded conduit connectors with optional M9300-100 conduit connector |
| Enclosure Rating | IP54 / NEMA 5 |
| Operating Ambient Temperature | -22°F to 140°F / -30°C to 60°C, 95% RH noncondensing |
| Storage Temperature | -40°F to 185°F / -40°C to 85°C, 95% RH noncondensing |
| Compliance | UL Listed, CE Mark, RCM Mark |
| Mounting | Direct mount for valves with ISO flange mounting, including VG1000 Series valves |
