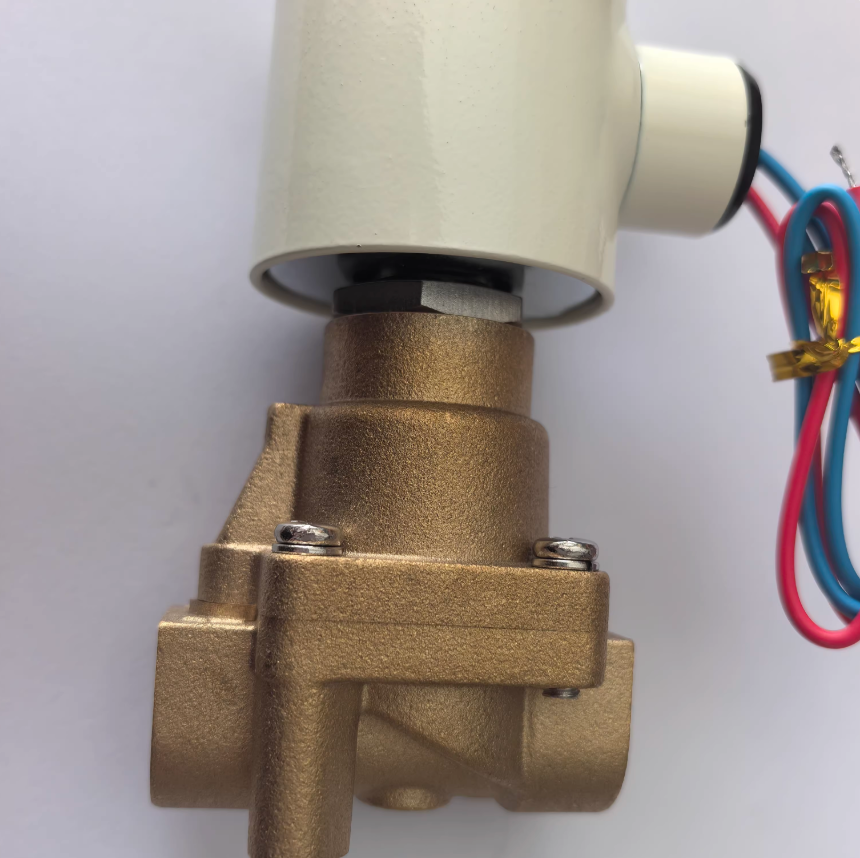

Hyoshin HPW102 AC220V HPW Series 2-Port Solenoid Valve, N.C., Rc(PT) 1/4, 220 VAC
Regular price
$135.00 USD
Regular price
Sale price
$135.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Hyoshin HPW102 AC220V is a highly dependable 2-port, normally closed (N.C.) solenoid valve engineered for stable fluid and pneumatic control in rigorous B2B industrial environments. Operating on a 220 VAC supply, this valve features a resilient brass body, an efficient Rc(PT) 1/4 port size, and a highly durable diaphragm architecture that expertly bridges both pilot and direct-acting mechanisms. Boasting a fire-resistant structure and capable of handling up to 10 kgf/cm² of pressure, it is the ideal component for integrating into water purifiers, medical instruments, and advanced vacuum packaging machinery.
| Product ID (MPN) | HPW102 AC220V |
| Valve Configuration | 2-Port, Normally Closed (N.C.) |
| Actuation Type | Diaphragm Type (Pilot/Direct Combination) |
| Applicable Fluid | Air, Water, Clean Oil, Inert Gas |
| Rated Voltage | 220 VAC |
| Fluid Pressure Range (AC) | 0 ~ 10 kgf/cm² (0 ~ 1 MPa) |
| Port Type & Size | Rc(PT) 1/4 |
| Orifice Size | Ø10 mm |
| Body Material | Brass |
| Seal Material | NBR (Standard) |
| Fluid Temperature Rating | 0 ~ 60°C |
| Power Consumption | 14 W |
| Electrical Connection | Console box (Standard) |
| Coil Insulation Class | Class B |
| Allowable Voltage Fluctuation | ±10% (AC) |
| Weight | 0.53 kg |
