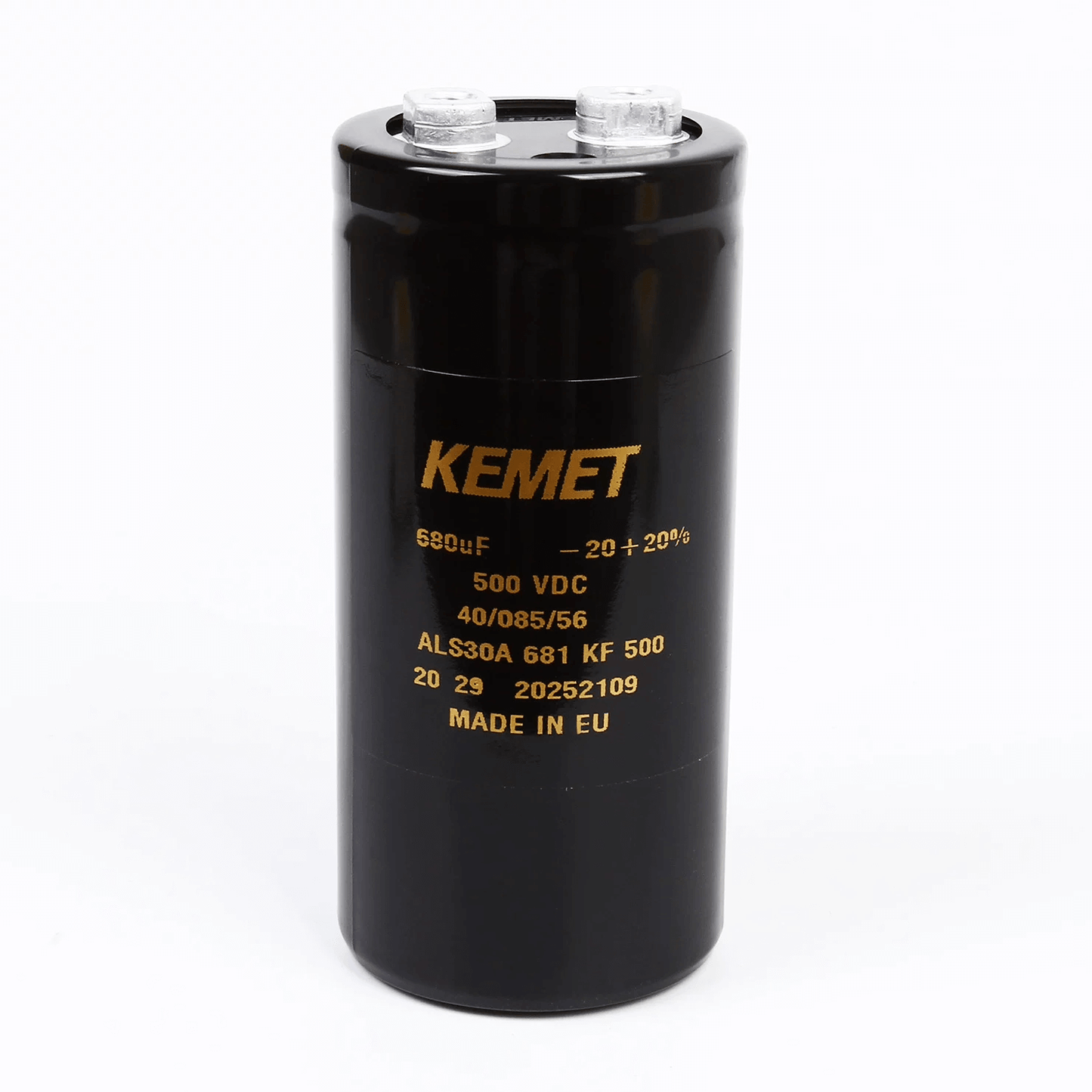

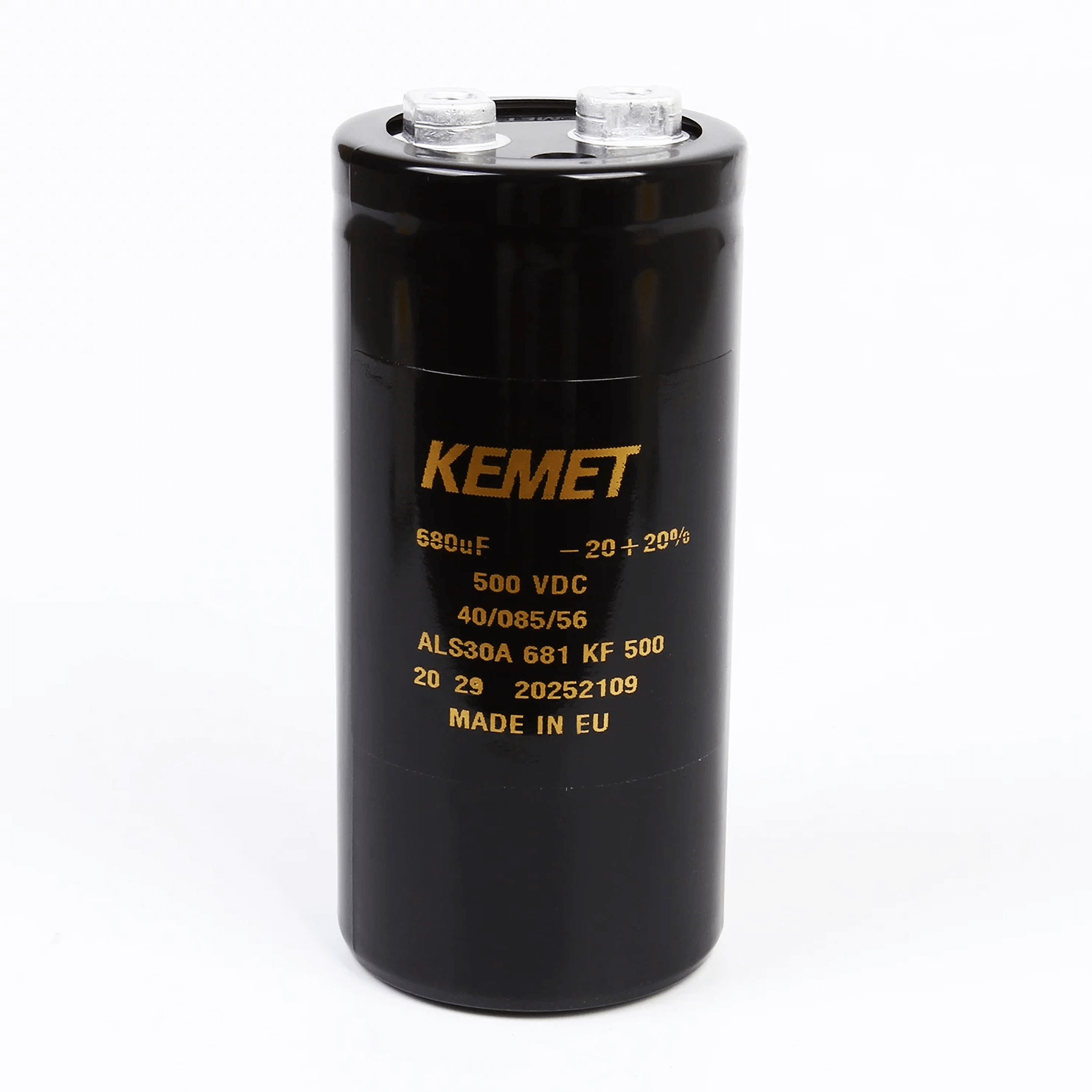

KEMET ALS30A681KF500 Aluminum Electrolytic Capacitor, 680 µF, 500 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A681KF500 is an ALS30 Series aluminum electrolytic capacitor rated at 680 µF and 500 V. Its chassis-mount radial can construction, screw terminals, and 18,000-hour lifetime at 85°C support high-voltage filtering and energy-storage functions in industrial power electronics.
| Manufacturer Part Number | ALS30A681KF500 |
| Brand | KEMET |
| Series | ALS30 |
| Capacitance | 680 µF |
| Rated Voltage | 500 V |
| Tolerance | ±20% |
| ESR | 255 mOhm at 100 Hz |
| Ripple Current | 5.7 A at 100 Hz; 9.6 A at 10 kHz |
| Impedance | 133 mOhm |
| Mounting Type | Chassis mount |
| Dimensions | 51.00 mm diameter × 107.00 mm height |
| Lead Spacing | 22.20 mm |
| Polarization | Polar |
| Service Life | 18,000 hours at 85°C |
Typical applications include frequency converters, motor drives, industrial power supplies, and high-voltage power filtering systems. Confirm capacitance, voltage, ripple-current ratings, dimensions, mounting, and terminal configuration against the equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A681KF500 capacitors, helping procurement teams evaluate verified specifications and technical alignment for industrial maintenance and power-electronics applications.
Send the MPN, required quantity, and application requirements to request a B2B quote and sourcing review.
