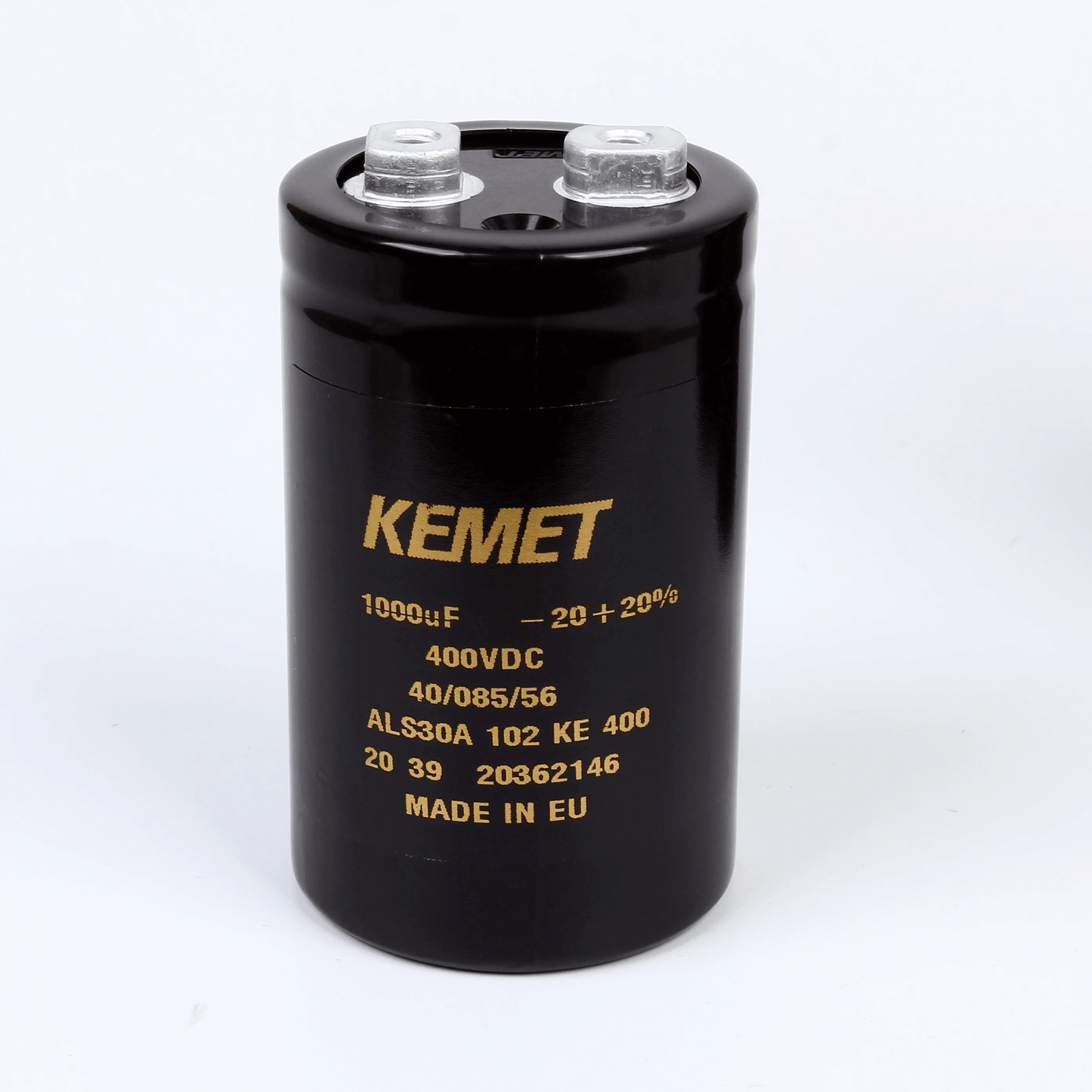

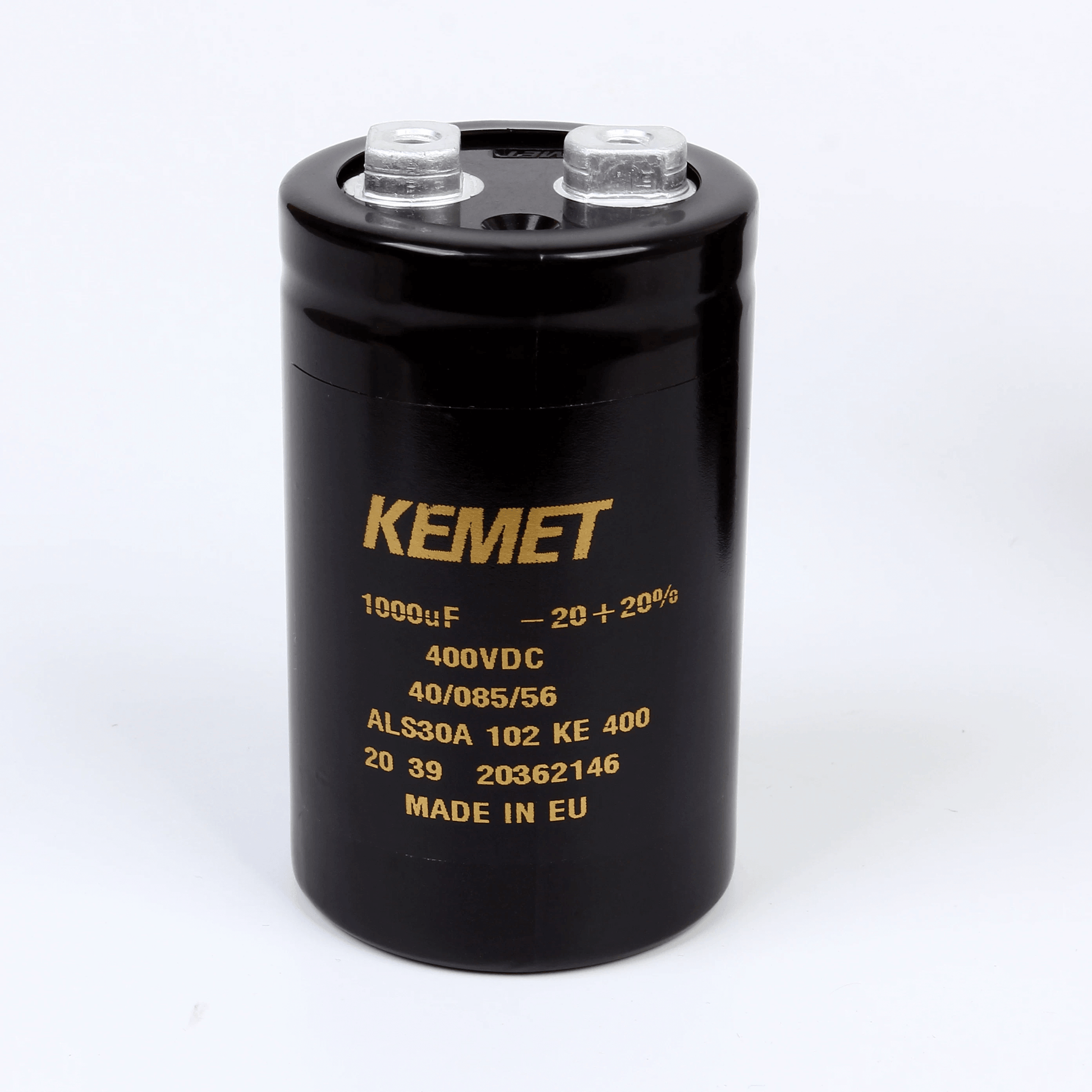

KEMET ALS30A102KE400 ALS30 Aluminum Electrolytic Capacitor, 1000 µF, 400 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A102KE400 is an ALS30 Series aluminum electrolytic capacitor with 1000 µF capacitance, 400 V rated voltage, ±20% tolerance, and screw-terminal construction for chassis-mount industrial power applications.
| Product ID (MPN) | ALS30A102KE400 |
| Brand | KEMET |
| Series | ALS30 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 1000 µF |
| Rated Voltage | 400 V |
| Tolerance | ±20% |
| ESR | 139 mOhm @ 100 Hz |
| Impedance | 98 mOhms |
| Ripple Current at Low Frequency | 5.8 A @ 100 Hz |
| Ripple Current at High Frequency | 10.3 A @ 10 kHz |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 51.00mm Dia x 84.00mm H |
| Lead Spacing | 22.20mm |
| Lifetime | 18000 Hrs @ 85°C |
Typical applications include power supply filtering, energy storage, motor drives, and welding equipment where capacitance, rated voltage, ESR, ripple current, mounting type, and screw-terminal package should be reviewed against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A102KE400 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
