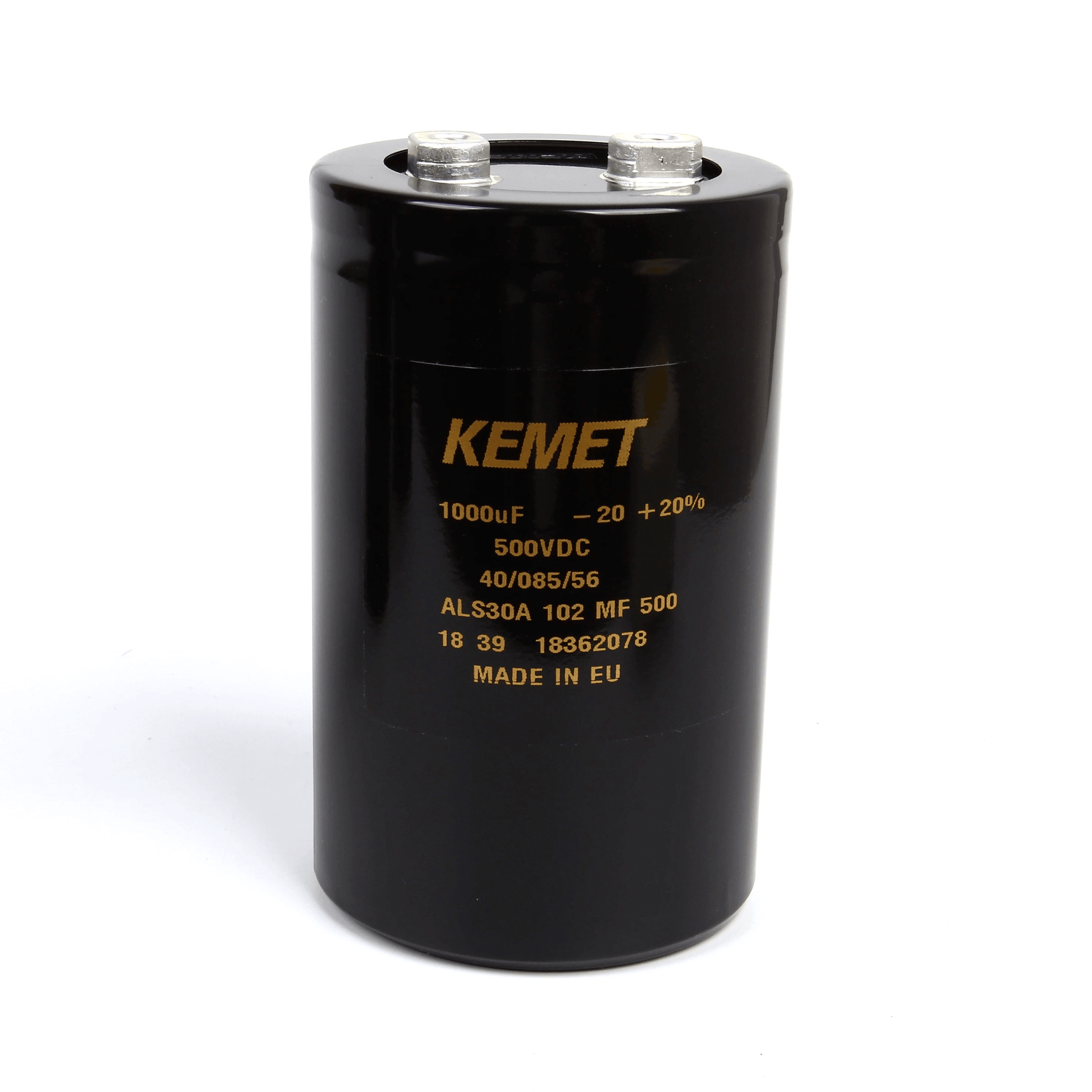

KEMET ALS30A102KF500 ALS30 Series Aluminum Electrolytic Capacitor, 1000 µF, 500V
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A102KF500 is a high-performance aluminum electrolytic capacitor designed for demanding industrial applications requiring high voltage stability and long-term reliability. Featuring a robust screw terminal construction and a chassis-mount form factor, this ALS30 series component is engineered for power electronics, motor drives, and large-scale energy storage systems where endurance at elevated temperatures is critical.
| Product ID (MPN) | ALS30A102KF500 |
| Capacitance | 1000 µF |
| Voltage - Rated | 500 V |
| Tolerance | ±20% |
| ESR (Equivalent Series Resistance) | 165 mOhm @ 100Hz |
| Impedance | 130 mOhms |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Polarization | Polar |
