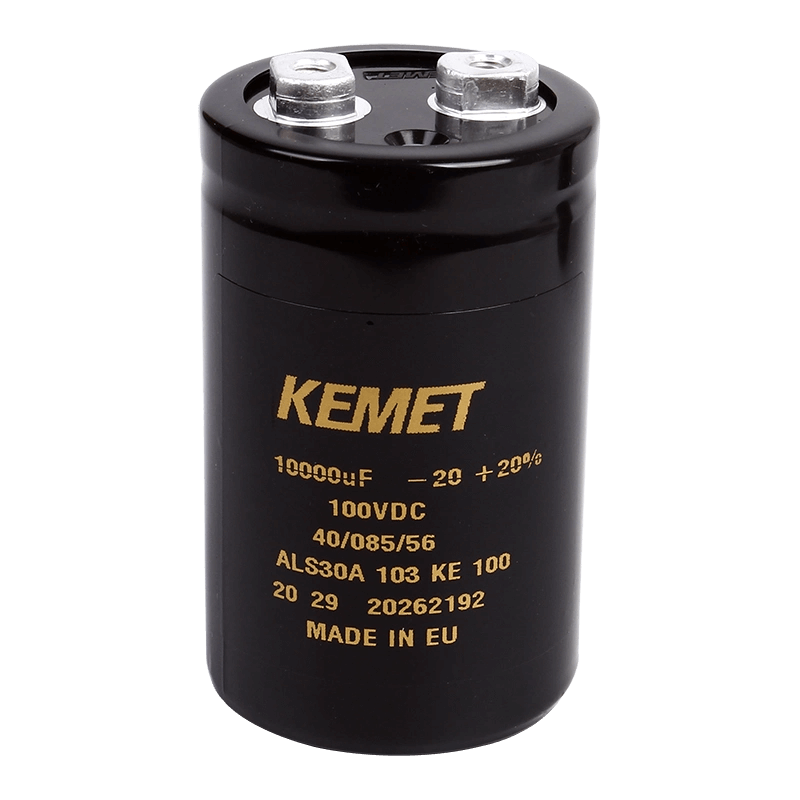

KEMET ALS30A103KE100 ALS30 Series Aluminum Electrolytic Capacitor, 10000 µF, 100 V
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A103KE100 is a high-capacitance aluminum electrolytic power capacitor engineered for demanding industrial filtering and energy storage applications. Designed with a robust screw terminal interface and chassis-mount configuration, this ALS30 series component provides exceptional ripple current capability and long-term operational stability in power supplies and motor control systems.
| Product ID (MPN) | ALS30A103KE100 |
| Capacitance | 10000 µF |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 28 mOhm @ 100Hz |
| Ripple Current @ Low Frequency | 10.1 A @ 100 Hz |
| Impedance | 24 mOhms |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.307" (84.00mm) |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Polarization | Polar |
