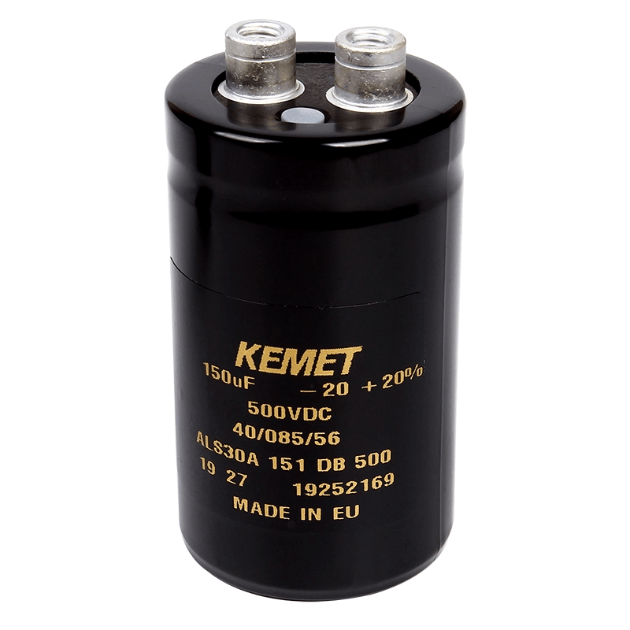

KEMET ALS30A151DB500 ALS30 Series Aluminum Electrolytic Capacitor, 150 µF, 500 V
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30 series is a high-performance aluminum electrolytic capacitor designed for demanding industrial power electronics. This component features robust screw terminals and is optimized for high-voltage DC link applications, offering exceptional reliability and long life in motor drives and power conversion systems.
| Product ID (MPN) | ALS30A151DB500 |
| Capacitance | 150 µF |
| Voltage DC | 500 VDC |
| Surge Voltage | 550 VDC |
| Tolerance | 20% |
| ESR (Equivalent Series Resistance) | 930 mOhms @ 100 Hz |
| Ripple Current | 2 Amps @ 100 Hz / 85°C |
| Leakage Current | 450 µA @ 5min |
| Size / Dimension (D x L) | 36mm x 62mm |
| Terminal Type | Screw Terminals M5 |
| Mounting | Through-Hole / Chassis Mount |
| Operational Life | 11000 Hrs @ 85°C |
| Temperature Range | -40°C to +85°C |
