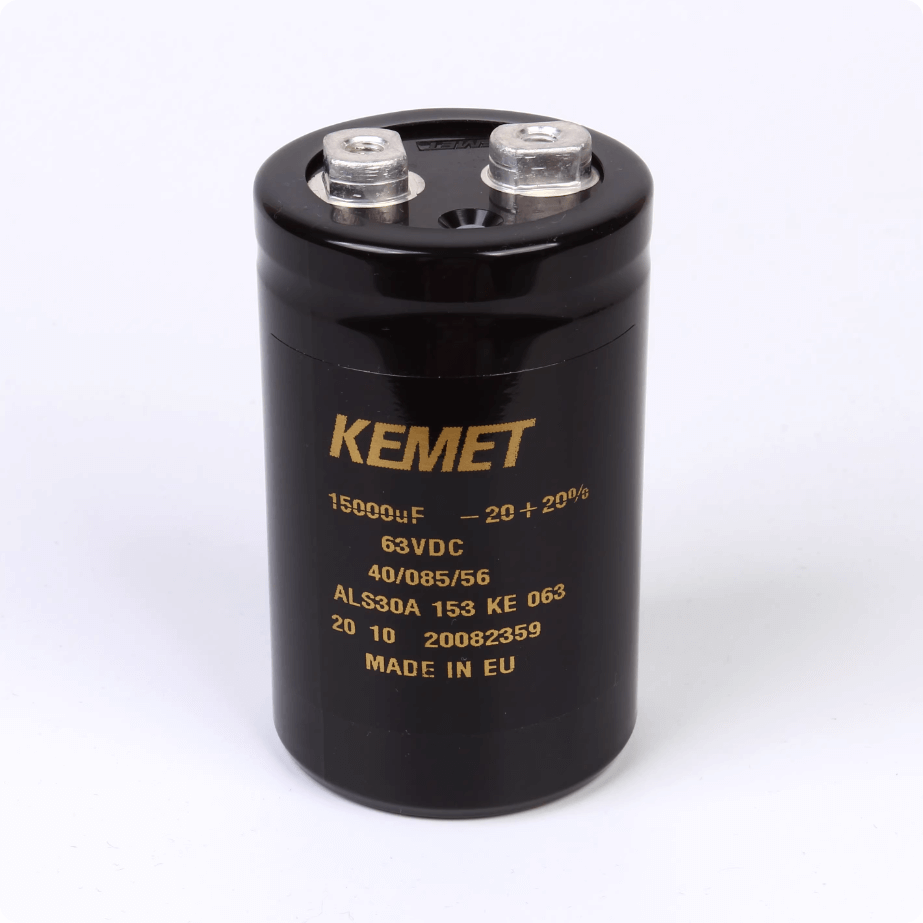

KEMET ALS30A153KE063 ALS30 Aluminum Electrolytic Capacitor, 15000µF, 63V
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A153KE063 is a high-performance aluminum electrolytic capacitor engineered for industrial-grade power applications requiring exceptional ripple current handling and long-term reliability. Featuring a robust chassis-mount design with screw terminals, this ALS30 series component is optimized for motor drives, UPS systems, and large-scale power supply units operating in demanding environments.
| Product ID (MPN) | ALS30A153KE063 |
| Capacitance | 15000 µF |
| Voltage - Rated | 63 V |
| Tolerance | ±20% |
| ESR (Equivalent Series Resistance) | 12 mOhm @ 100Hz |
| Ripple Current @ Low Frequency | 13.9 A @ 100 Hz |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
