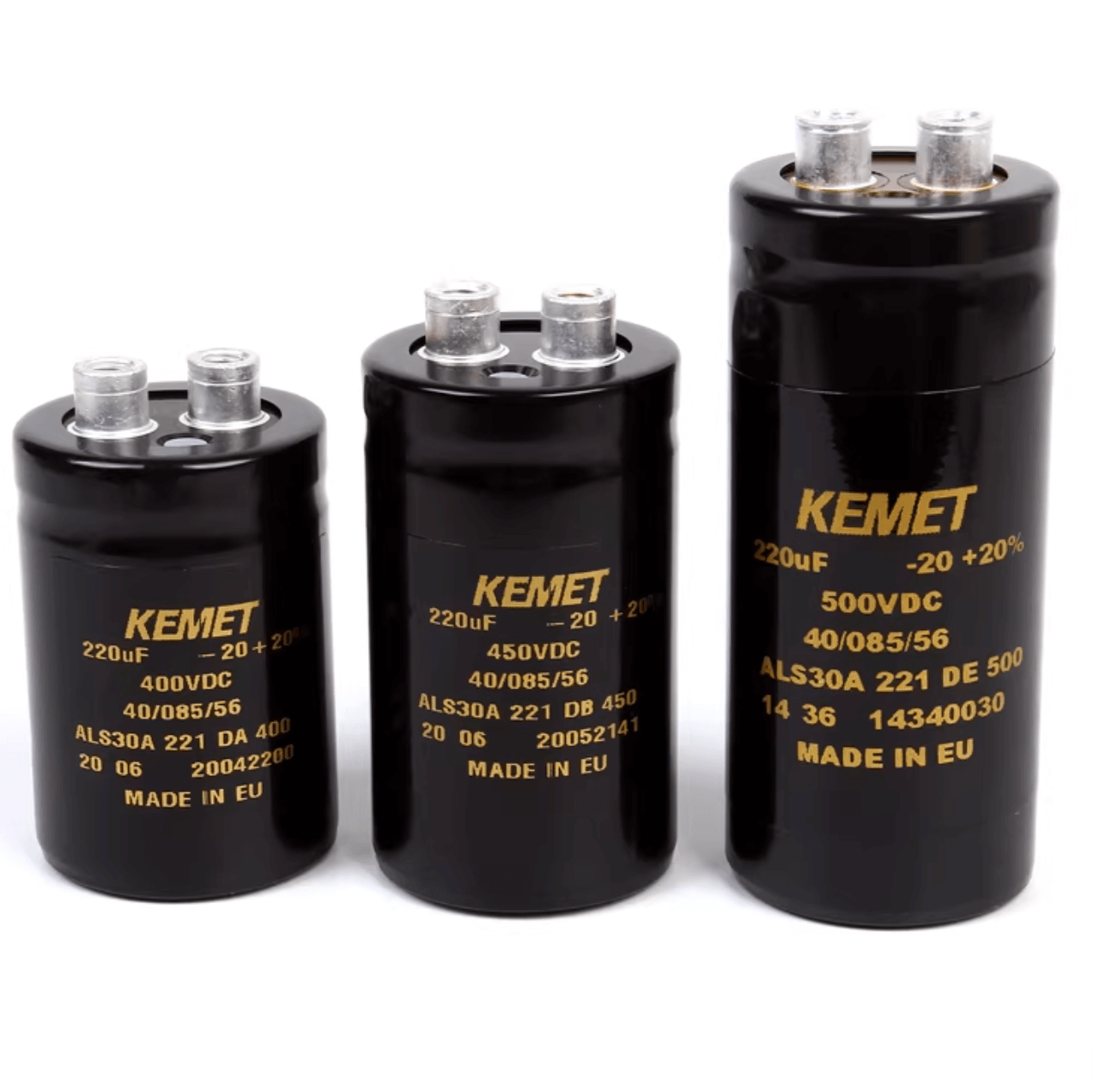

KEMET ALS30A221DE500 ALS30 Series Aluminum Electrolytic Capacitor, 220 µF, 500 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A221DE500 is an ALS30 Series aluminum electrolytic capacitor with 220 µF capacitance, 500 VDC rated voltage, 550 VDC surge voltage, and M5 screw terminals for industrial power electronics applications.
| Product ID (MPN) | ALS30A221DE500 |
| Brand | KEMET |
| Series | ALS30 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 220 µF |
| Rated Voltage | 500 VDC |
| Surge Voltage | 550 VDC |
| Tolerance | 20% |
| ESR | 635 mOhms @ 100 Hz, 20°C |
| Ripple Current | 2.7 A @ 100 Hz, 85°C |
| Leakage Current | 660 µA @ 5 min, 20°C |
| Termination | Screw Terminals M5 |
| Dimensions | 36mm x 82mm |
| Lead Spacing | 12.8mm |
| Lifetime | 11000 Hrs @ 85°C |
Typical applications include frequency converters, UPS systems, and switch-mode power supplies where capacitance, rated voltage, surge voltage, ESR, ripple current, termination, and dimensions should be reviewed against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A221DE500 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
