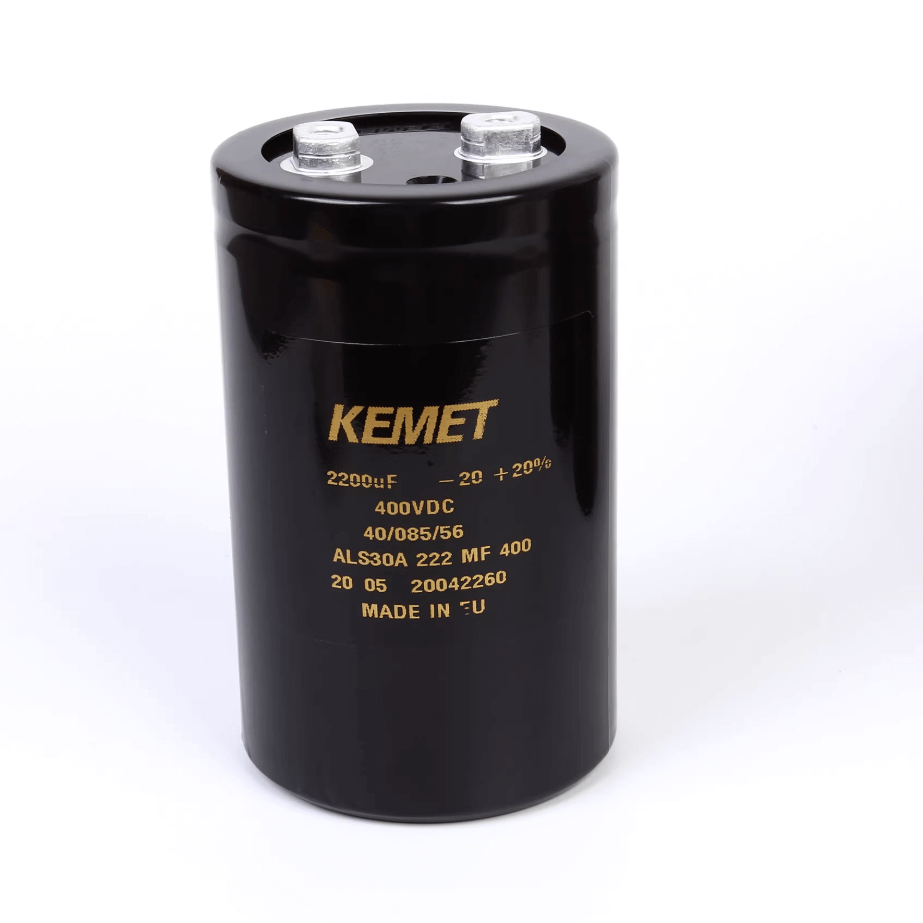

KEMET ALS30A222MF400 ALS30 Series Aluminum Electrolytic Capacitor, 2200 µF, 400 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A222MF400 is an ALS30 Series aluminum electrolytic capacitor rated at 2200 µF and 400 V. It features chassis mounting, a radial can package with screw terminals, and a service life of 19,000 hours at 85°C for industrial power applications.
| Manufacturer Part Number | ALS30A222MF400 |
| Brand | KEMET |
| Series | ALS30 |
| Capacitance | 2200 µF |
| Rated Voltage | 400 V |
| ESR | 62 mOhm at 100 Hz |
| Ripple Current | 11.2 A at 100 Hz |
| Impedance | 44 mOhm |
| Mounting Type | Chassis mount |
| Package | Radial can with screw terminals |
| Dimensions | 66.00 mm diameter × 107.00 mm height |
| Lead Spacing | 28.50 mm |
| Polarization | Polar |
| Service Life | 19,000 hours at 85°C |
Typical applications include industrial power supplies, motor drive systems, energy storage, and power filtering. Verify capacitance, rated voltage, ripple current, dimensions, mounting, and terminal configuration against the original equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for the KEMET ALS30A222MF400, helping procurement teams review verified specifications and assess technical alignment for industrial power systems.
Send the MPN, required quantity, and application requirements to request a B2B quote and sourcing review.
