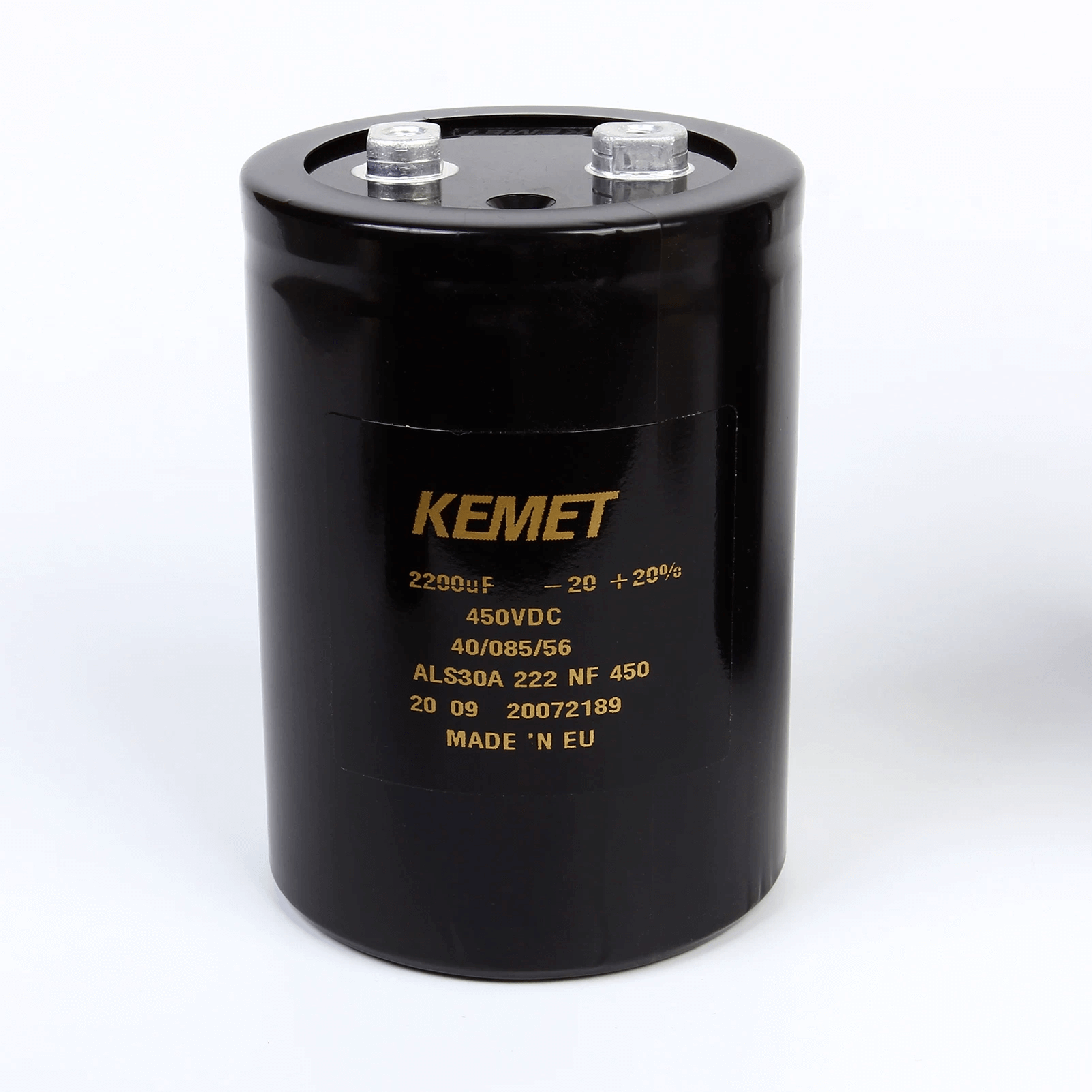

KEMET ALS30A222NF450 ALS30 Series Aluminum Electrolytic Capacitor, 2200 µF, 450 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A222NF450 is an ALS30 Series aluminum electrolytic capacitor with 2200 µF capacitance, 450 V rated voltage, ±20% tolerance, and screw-terminal termination for chassis-mount industrial power applications.
| Product ID (MPN) | ALS30A222NF450 |
| Brand | KEMET |
| Series | ALS30 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 2200 µF |
| Rated Voltage | 450 V |
| Tolerance | ±20% |
| ESR | 59 mOhm @ 100 Hz |
| Ripple Current at Low Frequency | 12.2 A @ 100 Hz |
| Ripple Current at High Frequency | 21.1 A @ 10 kHz |
| Impedance | 41 mOhms |
| Mounting Type | Chassis Mount |
| Termination | Screw Terminals |
| Size / Dimension | 77.00mm Dia x 105.00mm Height |
| Lead Spacing | 31.80mm |
| Lifetime | 20000 Hrs @ 85°C |
| Polarization | Polar |
Typical applications include power electronics, motor drives, and energy storage systems where capacitance, rated voltage, ESR, ripple current, impedance, mounting type, and screw-terminal termination should be reviewed against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A222NF450 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
