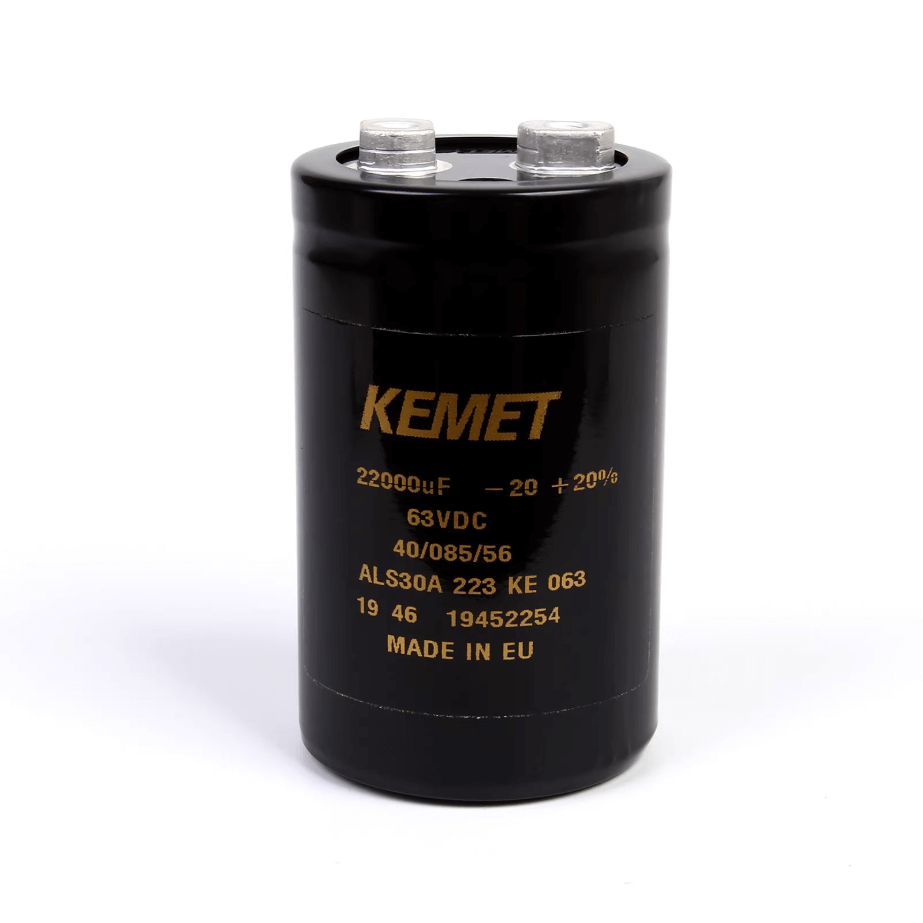

KEMET ALS30A223KE063 ALS30 Series Aluminum Electrolytic Capacitor, 22000 µF, 63 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A223KE063 is an ALS30 Series aluminum electrolytic capacitor rated at 22000 µF and 63 V. It features chassis mounting, a radial can construction with screw terminals, and a service life of 18,000 hours at 85°C.
| Manufacturer Part Number | ALS30A223KE063 |
| Brand | KEMET |
| Series | ALS30 |
| Capacitance | 22000 µF |
| Rated Voltage | 63 V |
| Tolerance | ±20% |
| ESR | 12 mOhm at 100 Hz |
| Ripple Current | 13.9 A at 100 Hz; 14.4 A at 10 kHz |
| Impedance | 11 mOhm |
| Mounting Type | Chassis mount |
| Termination | Radial can with screw terminals |
| Dimensions | 51.00 mm diameter × 84.00 mm height |
| Lead Spacing | 22.20 mm |
| Polarization | Polar |
| Service Life | 18,000 hours at 85°C |
Typical applications include motor drives, UPS systems, industrial power supplies, energy storage, and filtering circuits. Verify capacitance, rated voltage, ripple current, dimensions, mounting, and terminal configuration against the original equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for the KEMET ALS30A223KE063, helping procurement teams review verified specifications and assess technical alignment for industrial power systems.
Send the MPN, required quantity, and application requirements to request a B2B quote and sourcing review.
