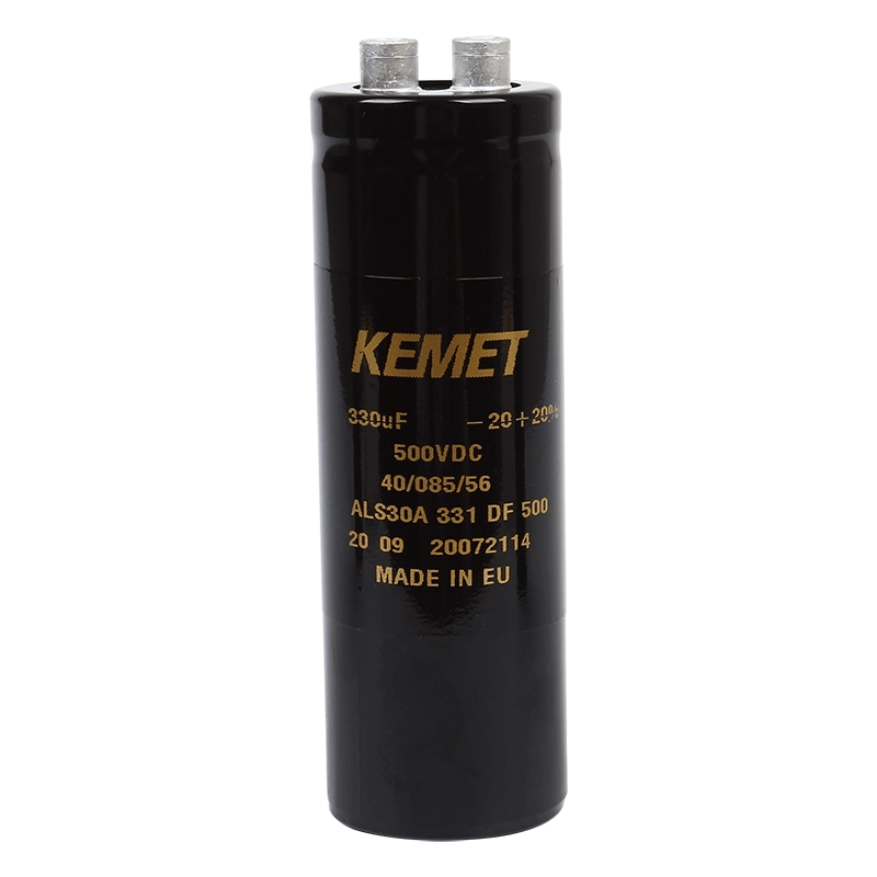

KEMET ALS30A331DF500 / ALS30A ALS30 Series Aluminum Electrolytic Capacitor, 330 µF, 500 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A331DF500 is an ALS30 Series aluminum electrolytic capacitor rated at 330 µF and 500 V. It features a chassis-mount radial can design with screw terminals and an operational lifetime of 11,000 hours at 85°C.
| Manufacturer Part Number | ALS30A331DF500 |
| Base Product Number | ALS30A |
| Brand | KEMET |
| Series | ALS30 |
| Capacitance | 330 µF |
| Rated Voltage | 500 V |
| Tolerance | ±20% |
| ESR | 420 mOhm at 100 Hz |
| Impedance | 258 mOhm |
| Ripple Current | 3.5 A at 100 Hz; 6.2 A at 10 kHz |
| Mounting Type | Chassis mount |
| Package | Radial can with screw terminals |
| Dimensions | 36.00 mm diameter × 105.00 mm height |
| Lead Spacing | 12.80 mm |
| Polarization | Polar |
| Service Life | 11,000 hours at 85°C |
Typical applications include motor drives, UPS systems, industrial power supplies, and power smoothing circuits. Verify capacitance, rated voltage, ripple current, dimensions, mounting, and terminal configuration against the original equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for the KEMET ALS30A331DF500, helping procurement teams review verified specifications and assess technical alignment for industrial power systems.
Send the MPN, required quantity, and application requirements to request a B2B quote and sourcing review.
