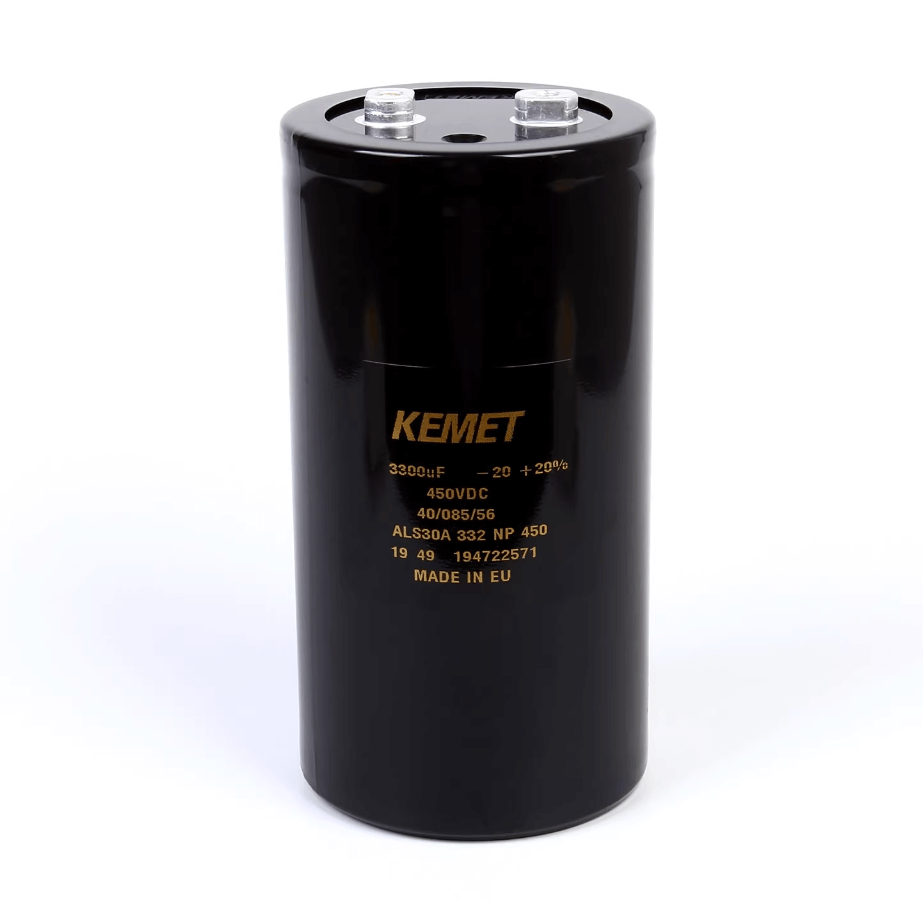

KEMET ALS30A332NP450 ALS30 Series Aluminum Electrolytic Capacitor, 3300 µF, 450 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A332NP450 is an ALS30 Series aluminum electrolytic capacitor with 3300 µF capacitance, 450 V rated voltage, ±20% tolerance, and screw-terminal termination for chassis-mount industrial power applications.
| Product ID (MPN) | ALS30A332NP450 |
| Base Product Number | ALS30A |
| Brand | KEMET |
| Series | ALS30 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 3300 µF |
| Rated Voltage | 450 V |
| Tolerance | ±20% |
| ESR | 39 mOhm @ 100 Hz |
| Ripple Current at Low Frequency | 16.1 A @ 100 Hz |
| Ripple Current at High Frequency | 25.1 A @ 10 kHz |
| Impedance | 27 mOhms |
| Mounting Type | Chassis Mount |
| Termination | Screw Terminals |
| Size / Dimension | 77.00mm Dia. x 146.00mm Height |
| Lead Spacing | 31.80mm |
| Lifetime | 20000 Hrs @ 85°C |
Typical applications include frequency converters, uninterruptible power supplies, and energy storage systems where capacitance, rated voltage, ESR, ripple current, impedance, mounting type, and screw-terminal termination should be reviewed against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A332NP450 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
