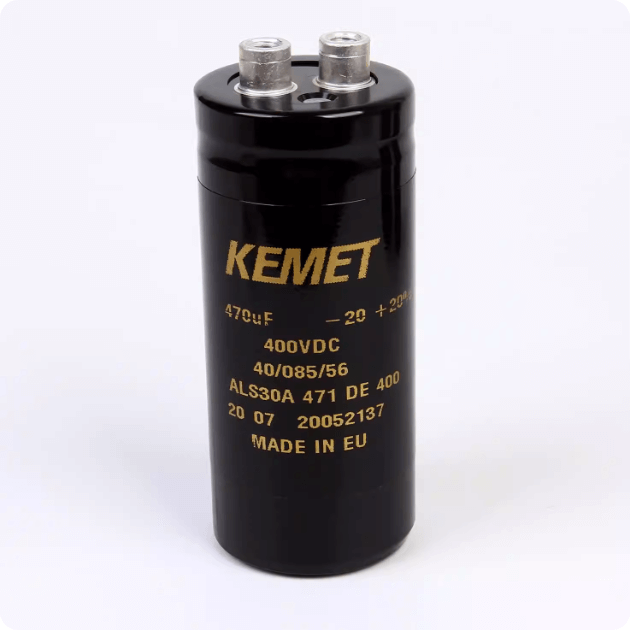

KEMET ALS30A471DE400 ALS30 Series Aluminum Electrolytic Capacitor, 470 µF, 400 V
Regular price
$393.00 USD
Regular price
Sale price
$393.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A471DE400 is a high-reliability, chassis-mount aluminum electrolytic capacitor designed for general-purpose industrial power applications. Featuring a robust screw-terminal construction and excellent ripple current capability, this ALS30 series component is optimized for energy storage and filtering in motor drives, power supplies, and industrial automation systems.
| Product ID (MPN) | ALS30A471DE400 |
| Base Product Number | ALS30A |
| Capacitance | 470 µF |
| Voltage - Rated | 400 V |
| Tolerance | ±20% |
| ESR (Equivalent Series Resistance) | 267 mOhm @ 100Hz |
| Ripple Current @ High Frequency | 7.1 A @ 10 kHz |
| Impedance | 182 mOhms |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 36.00mm Dia x 84.00mm Height |
| Lifetime @ Temp. | 11000 Hrs @ 85°C |
