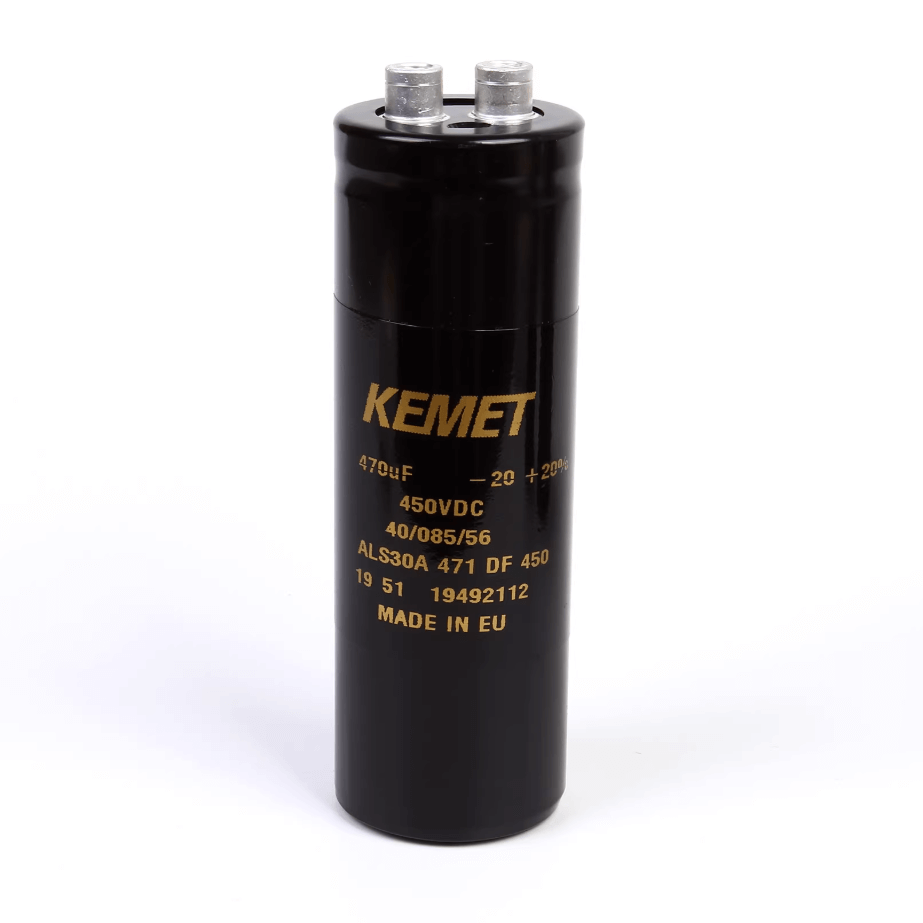

KEMET ALS30A471DF450 ALS30 Series Aluminum Electrolytic Capacitor, 470 µF, 450 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A471DF450 is an ALS30 Series aluminum electrolytic capacitor with 470 µF capacitance, 450 V rated voltage, ±20% tolerance, and screw-terminal construction for chassis-mount industrial power applications.
| Product ID (MPN) | ALS30A471DF450 |
| Brand | KEMET |
| Series | ALS30 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 470 µF |
| Rated Voltage | 450 V |
| Tolerance | ±20% |
| ESR | 235 mOhm @ 100 Hz |
| Ripple Current at Low Frequency | 4 A @ 100 Hz |
| Ripple Current at High Frequency | 8.4 A @ 10 kHz |
| Impedance | 155 mOhms |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Diameter | 1.417 in (36.00 mm) |
| Height - Seated Max | 4.134 in (105.00 mm) |
| Lead Spacing | 0.504 in (12.80 mm) |
| Lifetime | 11000 Hrs @ 85°C |
| Polarization | Polar |
Typical applications include general-purpose power electronics, motor drives, and power supplies where capacitance, rated voltage, ESR, ripple current, mounting type, and screw-terminal package should be reviewed against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A471DF450 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
