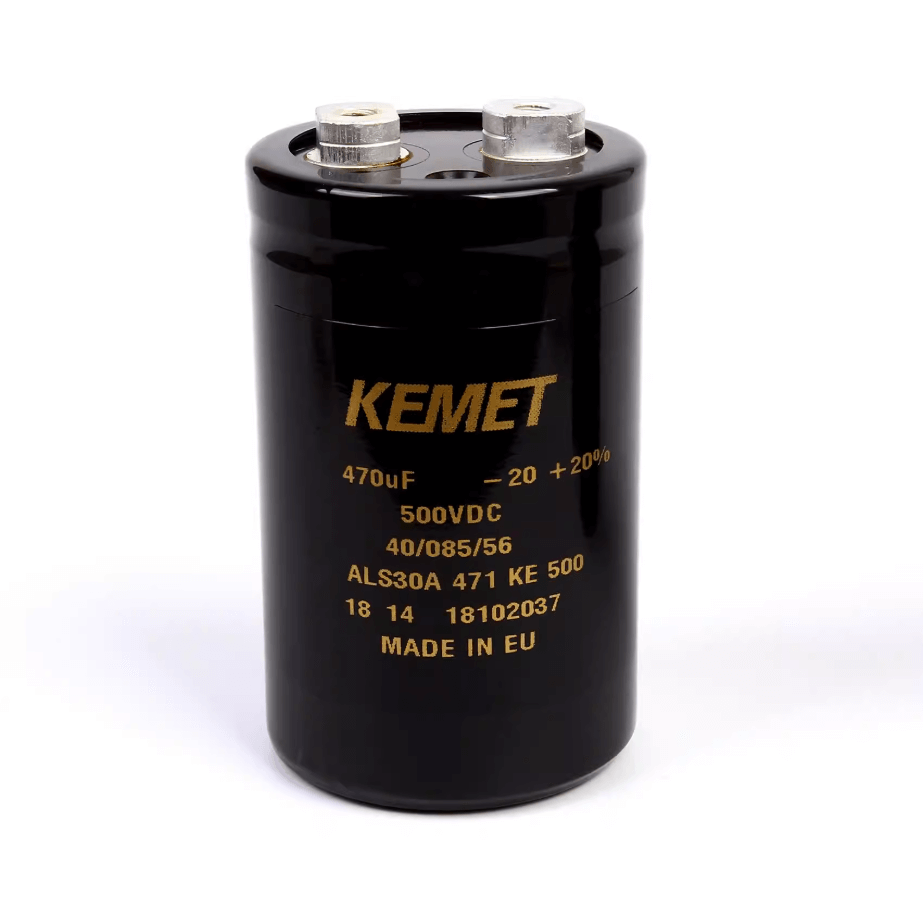

KEMET ALS30A471KE500 ALS30 Series Aluminum Electrolytic Capacitor, 470 µF, 500 V
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30 series is a high-reliability aluminum electrolytic capacitor designed for industrial applications requiring long life and high ripple current capability. Featuring a robust screw terminal construction and chassis-mount design, it is ideally suited for power electronics, motor drives, and inverter systems operating in demanding environments.
| Product ID (MPN) | ALS30A471KE500 |
| Capacitance | 470 µF |
| Voltage - Rated | 500 V |
| Tolerance | ±20% |
| ESR (Equivalent Series Resistance) | 365 mOhm @ 100 Hz |
| Ripple Current @ Low Frequency | 4.4 A @ 100 Hz |
| Ripple Current @ High Frequency | 7.5 A @ 10 kHz |
| Impedance | 194 mOhms |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Lead Spacing | 0.874" (22.20mm) |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Polarization | Polar |
