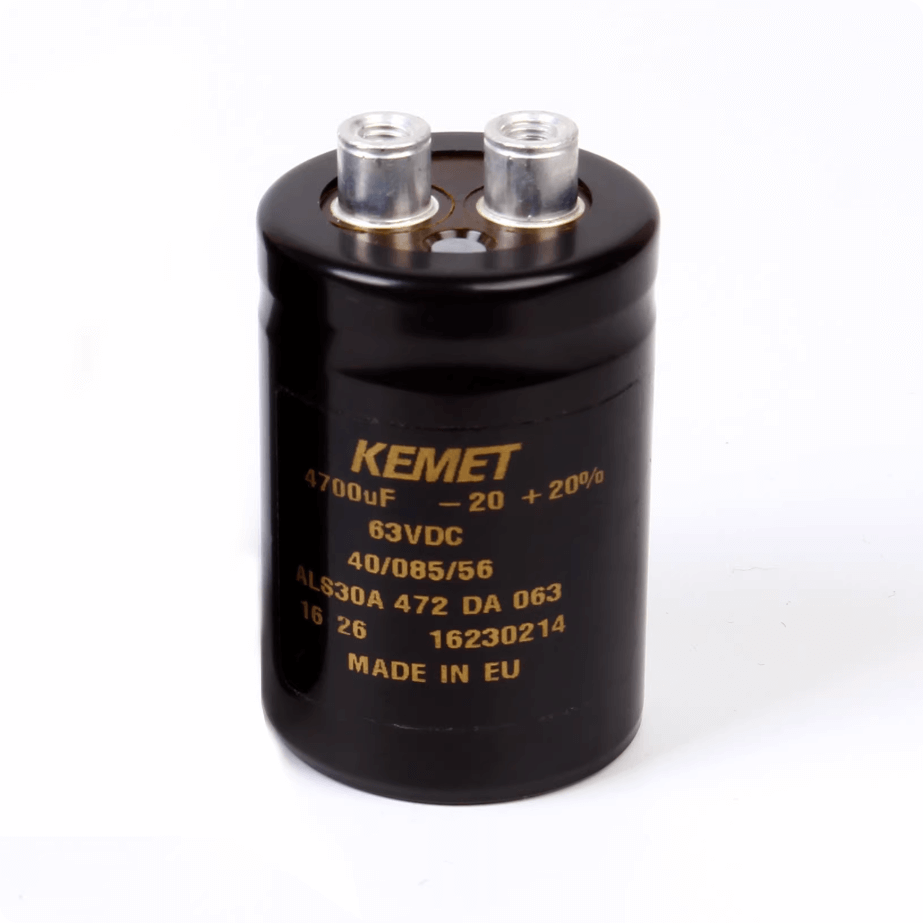

KEMET ALS30A472DA063 / ALS30A ALS30 Series Aluminum Electrolytic Capacitor, 4700 µF, 63 V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A472DA063 is an ALS30 Series aluminum electrolytic capacitor rated at 4700 µF and 63 V. It features a chassis-mount radial can construction with screw terminals and a service life of 11,000 hours at 85°C.
| Manufacturer Part Number | ALS30A472DA063 |
| Base Product Number | ALS30A |
| Brand | KEMET |
| Series | ALS30 |
| Capacitance | 4700 µF |
| Rated Voltage | 63 V |
| Tolerance | ±20% |
| ESR | 36 mOhm at 100 Hz |
| Ripple Current | 6.7 A at 100 Hz; 7.4 A at 10 kHz |
| Impedance | 28 mOhm |
| Mounting Type | Chassis mount |
| Package | Radial can with screw terminals |
| Dimensions | 36.00 mm diameter × 52.00 mm height |
| Lead Spacing | 12.80 mm |
| Polarization | Polar |
| Service Life | 11,000 hours at 85°C |
Typical applications include industrial power electronics, motor drives, power supplies, energy storage, and filtering circuits. Verify capacitance, rated voltage, ripple current, dimensions, mounting, and terminal configuration against the original equipment requirements before replacement.
Apexon Supply provides B2B sourcing and replacement support for the KEMET ALS30A472DA063, helping procurement teams review verified specifications and assess technical alignment for industrial power systems.
Send the MPN, required quantity, and application requirements to request a B2B quote and sourcing review.
