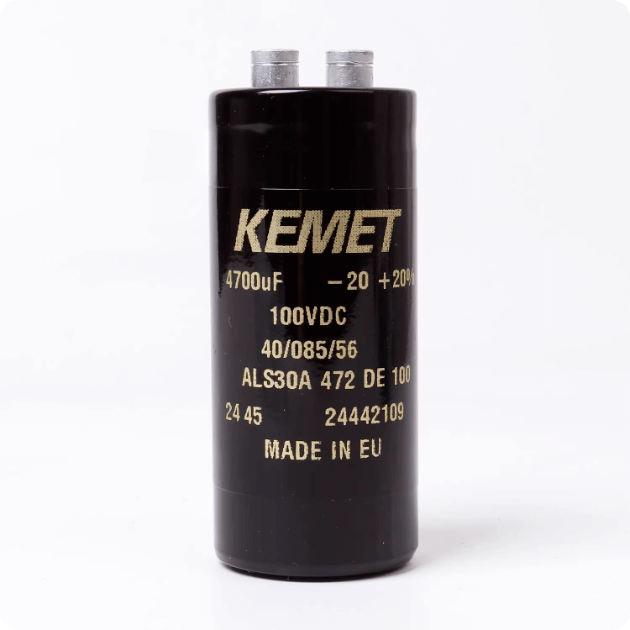

KEMET ALS30A472DE100 ALS30 Series Aluminum Electrolytic Capacitor, 4700 µF, 100 V
Regular price
$40.00 USD
Regular price
Sale price
$40.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A472DE100 is a high-reliability aluminum electrolytic capacitor designed for industrial applications requiring stable energy storage and effective ripple current handling. Engineered with a durable screw terminal design and chassis-mount housing, this ALS30 series component is optimized for use in power supplies, frequency converters, and motor control systems where long-term performance under load is essential.
| Product ID (MPN) | ALS30A472DE100 |
| Capacitance | 4700 µF |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 33 mOhm @ 100Hz |
| Ripple Current @ Low Frequency | 7.9 A @ 100 Hz |
| Impedance | 27 mOhms |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Lead Spacing | 0.504" (12.80mm) |
| Lifetime @ Temp. | 11000 Hrs @ 85°C |
| Polarization | Polar |
