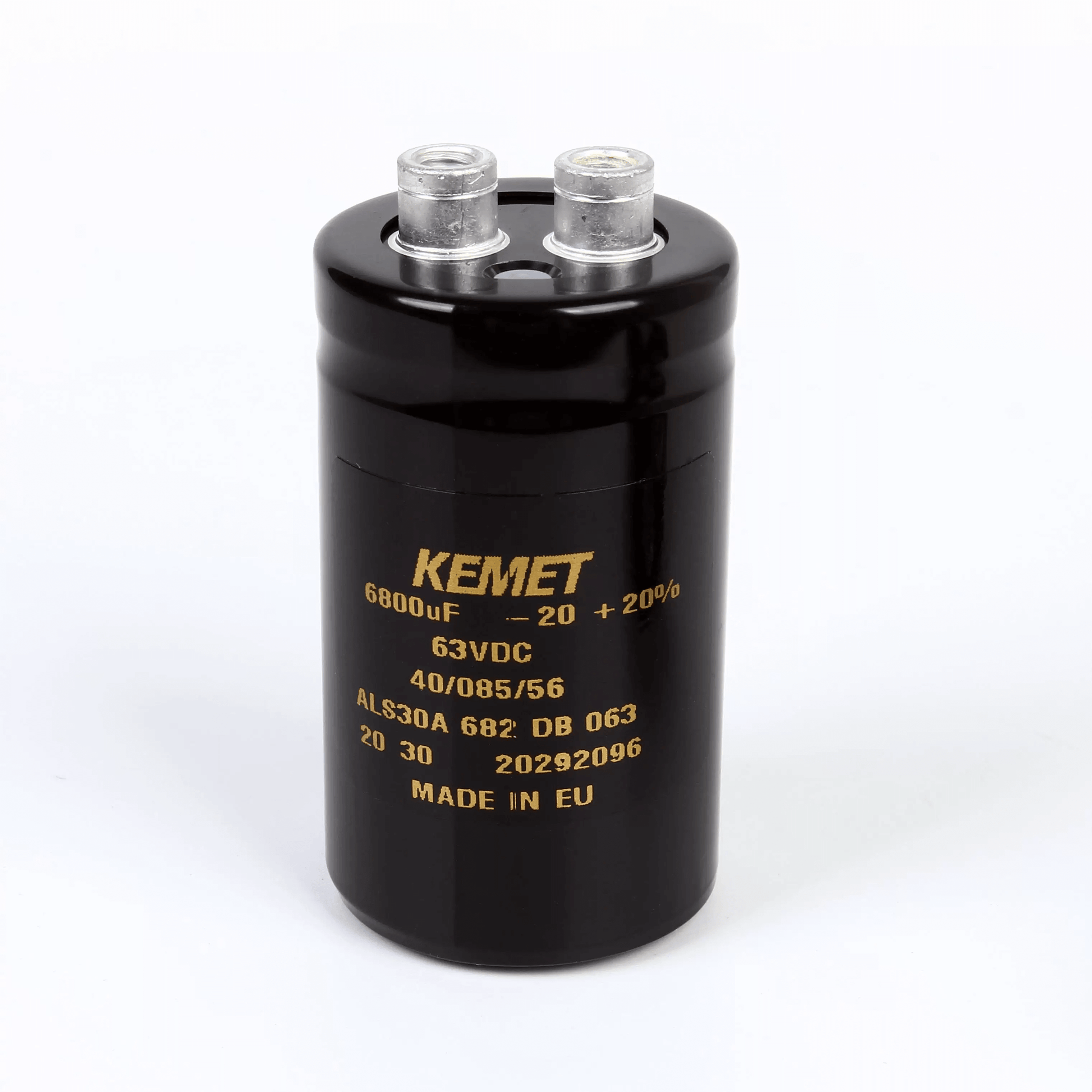

KEMET ALS30A682DB063 ALS30 Aluminum Electrolytic Capacitor, 6800 µF, 63V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS30A682DB063 is an ALS30 Series aluminum electrolytic capacitor with 6800 µF capacitance, 63 VDC rated voltage, ±20% tolerance, and screw-terminal construction for chassis-mount industrial power applications.
| Product ID (MPN) | ALS30A682DB063 |
| Brand | KEMET |
| Series | ALS30 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 6800 µF |
| Rated Voltage | 63 VDC |
| Tolerance | ±20% |
| ESR | 26 mOhm @ 100 Hz |
| Impedance | 20 mOhms |
| Ripple Current at Low Frequency | 8.2 A @ 100 Hz |
| Ripple Current at High Frequency | 9 A @ 10 kHz |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Diameter | 1.417 in (36.00 mm) |
| Height - Seated Max | 2.441 in (62.00 mm) |
| Lead Spacing | 0.504 in (12.80 mm) |
| Lifetime | 11000 Hrs @ 85°C |
| Polarization | Polar |
Typical applications include power electronics, motor drives, and energy storage systems where capacitance, rated voltage, ripple current, ESR, mounting type, and screw-terminal package must be reviewed against the original equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS30A682DB063 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
