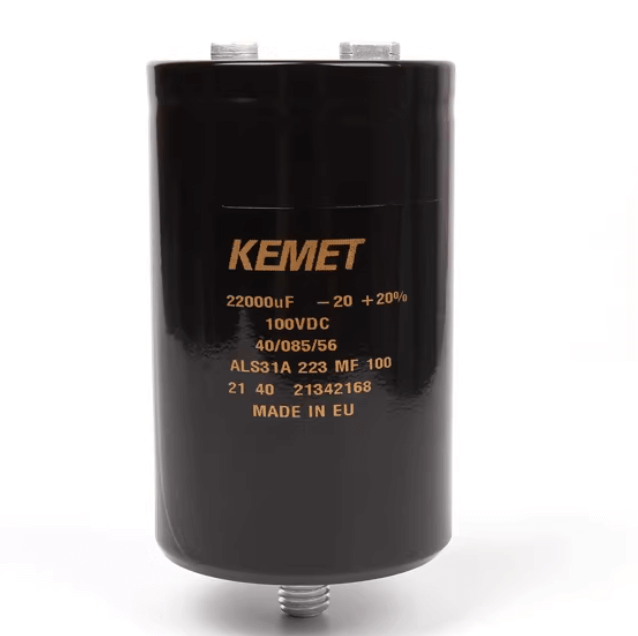

KEMET ALS31A223MF100 / A431PM223M100A Aluminum Electrolytic Capacitor, 22000 µF, 100 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET ALS31A223MF100 is an ALS31 Series aluminum electrolytic capacitor with 22000 µF capacitance, 100 VDC rated voltage, ±20% capacitance tolerance, and screw-terminal termination for industrial power applications.
| Product ID (MPN) | ALS31A223MF100 |
| Order Code | A431PM223M100A |
| Brand | KEMET |
| Series | ALS31 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 22000 µF |
| Capacitance Tolerance | ±20% |
| Rated Voltage | 100 VDC |
| ESR | 13 mΩ @ 100 Hz, 20°C |
| Ripple Current | 18.4 A @ 100 Hz, 85°C |
| Leakage Current | 6000 µA @ 5 min, 20°C |
| Case Dimensions | 66 mm x 105 mm |
| Lead Spacing | 28.5 mm |
| Mounting Style | Stud Mount (M12x16) |
| Termination | Screw Terminal |
| Rated Temperature | 85°C |
| Operational Life | 19000 hours |
Typical applications include frequency converters, UPS systems, switch-mode power supplies, energy storage circuits, and smoothing circuits where capacitance, rated voltage, ripple current, mounting style, and termination must be checked against the equipment requirement.
Apexon Supply provides B2B sourcing and replacement support for KEMET ALS31A223MF100 capacitors, helping procurement teams review verified specifications and confirm technical alignment before ordering.
Send the MPN, order code, required quantity, and application requirements to request a B2B quote for sourcing support.
