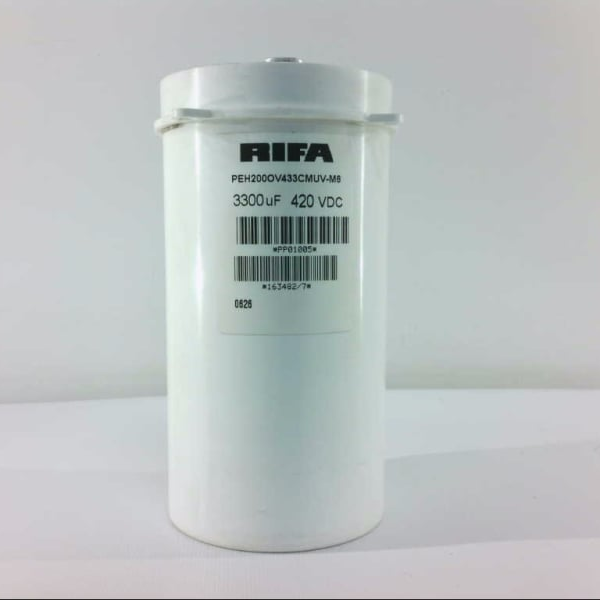

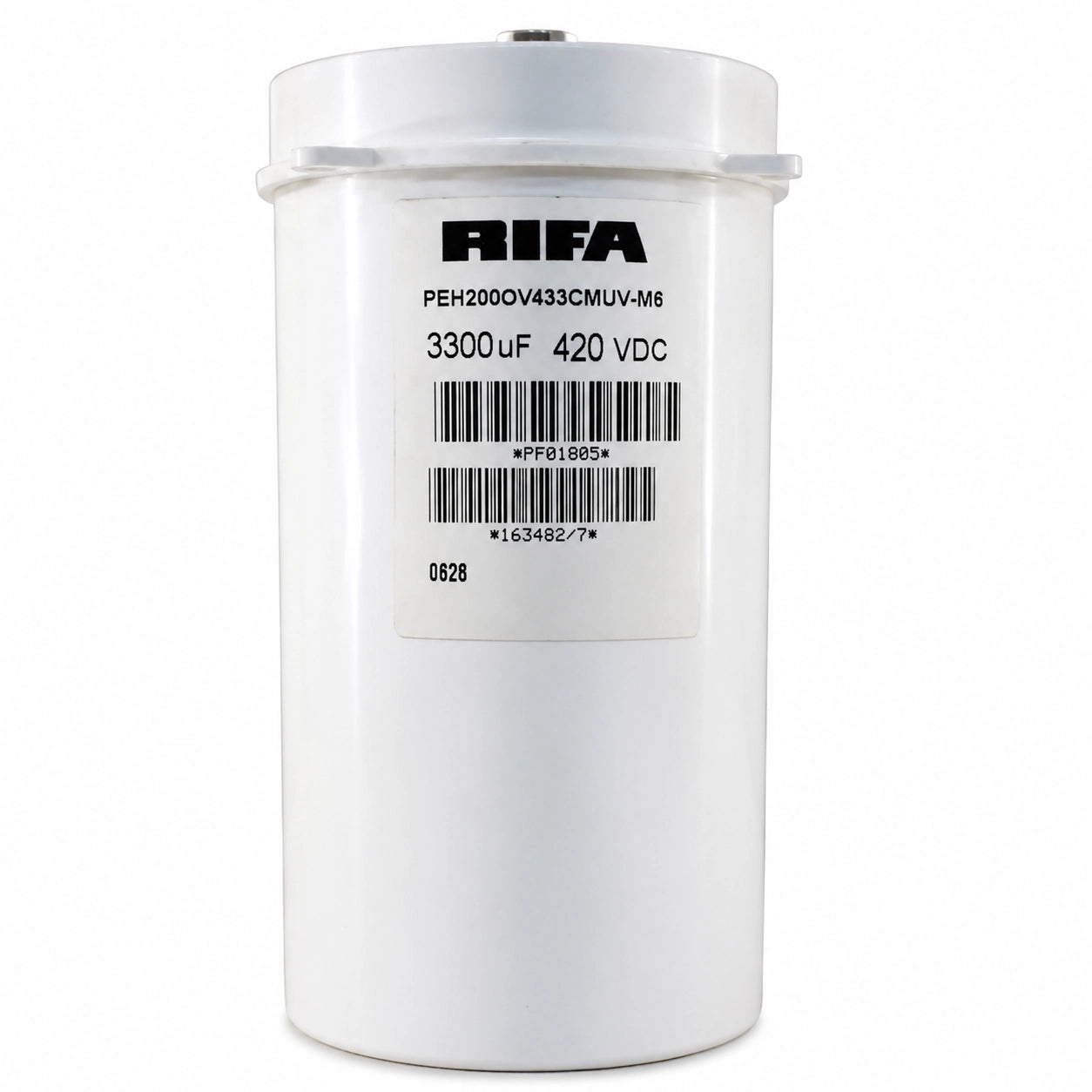

KEMET PEH200OV433CMUV-M6 PEH200 Series Aluminum Electrolytic Capacitor, 3300 µF, 420 VDC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The KEMET PEH200OV433CMUV-M6 is a PEH200 Series aluminum electrolytic capacitor with 3300 µF capacitance, 420 VDC rated voltage, ±20% tolerance, and M6 screw terminals for chassis-mount industrial power applications.
| Product ID (MPN) | PEH200OV433CMUV-M6 |
| Secondary ID | PEH200OV4330MB2 |
| Brand | KEMET |
| Series | PEH200 |
| Product Category | Aluminum Electrolytic Capacitor |
| Capacitance | 3300 µF |
| Rated Voltage | 420 VDC |
| Tolerance | ±20% |
| ESR | 22 mOhm @ 100 Hz |
| Ripple Current | 14 A @ 100 Hz |
| Terminal Type | M6 Screw Terminals |
| Dimensions | 76.6 mm x 147 mm |
| Mounting Type | Chassis Mount |
| Operational Life | 19000 Hrs @ 85°C |
| Temperature Range | -40°C to +85°C |
Typical applications include UPS systems, welding equipment, and motor drives where capacitance, rated voltage, ESR, ripple current, screw-terminal connection, and chassis-mount dimensions should be reviewed against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for KEMET PEH200OV433CMUV-M6 capacitors, helping procurement teams compare verified specifications and confirm technical alignment before ordering.
Send the MPN, secondary ID, required quantity, and application requirements to request a B2B quote for sourcing support.
