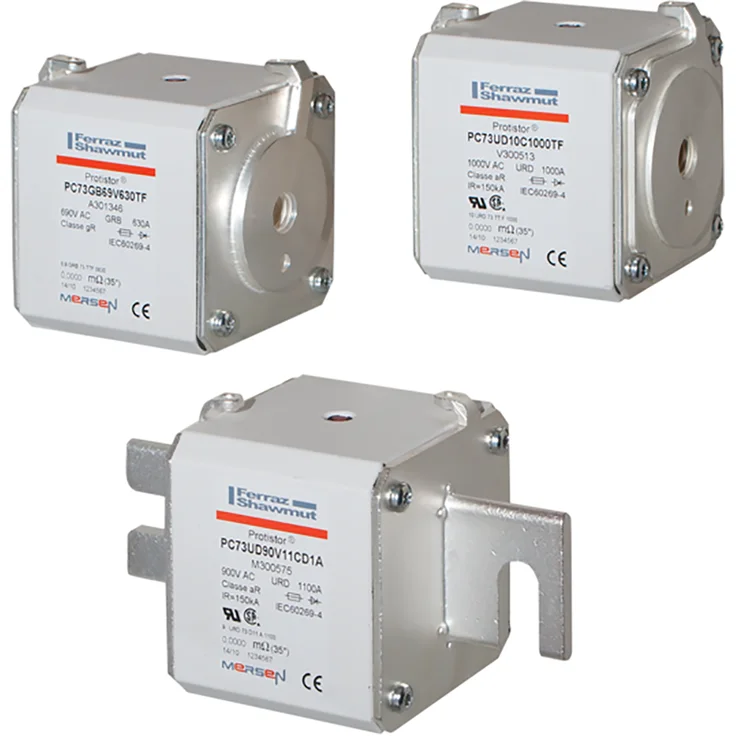

Mersen A130UD73LI500 / F300684 Protistor Size 73 aR High-Speed Semiconductor Fuse, 500 A, 1250V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Mersen A130UD73LI500 is a premium ultra-fast acting Protistor® square body fuse-link expertly engineered for the ultimate protection of power conversion equipment and heavy industrial motor drives. Operating within the high-performance aR characteristic class, this Size 73 fuse delivers leading-edge current limitation and superior thermal cycling capabilities, safeguarding highly sensitive semiconductor devices such as diodes, thyristors, and IGBTs from damaging short-circuit currents. Featuring non-magnetic hardware, silver-plated LI slotted blade terminals, and precision die-cut elements encapsulated in solidified sand, it provides rapid, reliable fault clearing (up to 126 kA breaking capacity) for mission-critical applications and enterprise UPS systems.
| Product ID (MPN) | A130UD73LI500 |
| Order Code / Item Number | F300684 |
| Product Series | Protistor® Square Body High-Speed Fuses |
| Fuse Size | Size 73 |
| Speed / Characteristic | aR (Ultra-Fast Acting Semiconductor Protection) |
| Rated Current (In) | 500 A |
| Rated Voltage (AC) | 1250 V AC (IEC) / 1300 V AC (UL) |
| Rated Breaking Capacity | 126 kA AC |
| Terminals / Mounting Style | Type LI (Slotted Blades) |
| Pre-arcing I²t | 44 kA²s |
| Clearing I²t at Rated Voltage | 360 kA²s |
| Power Dissipation (at In) | 112 W |
| Weight | 1.25 kg |
| Standards & Certifications | IEC 60269-4, VDE 636-23, UL/CSA Recognized (E76491) |
